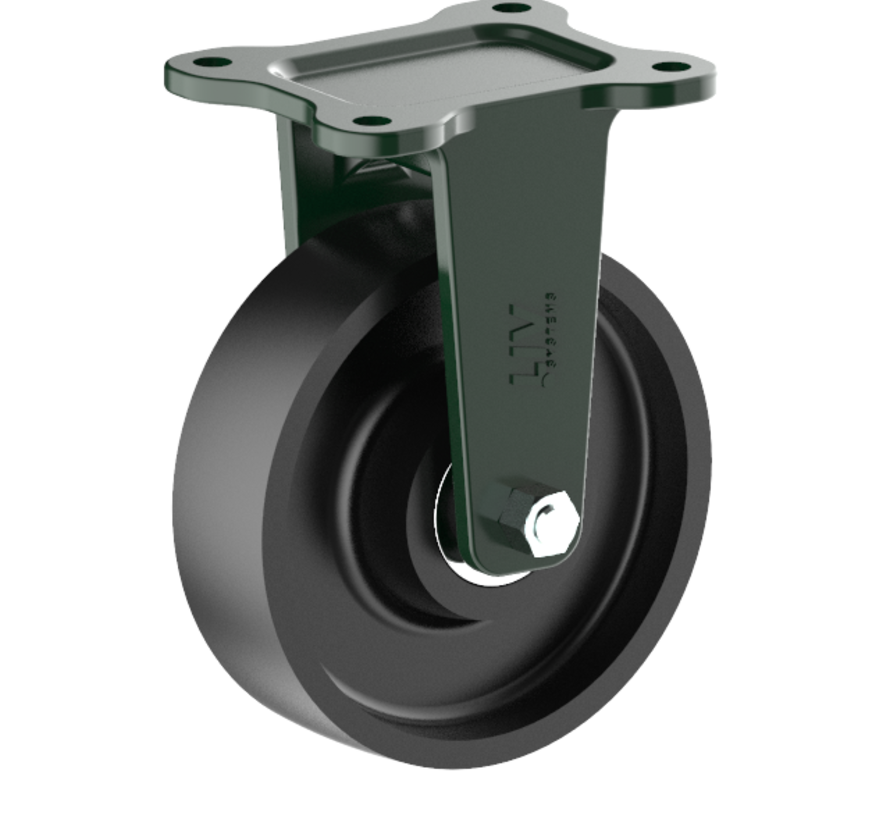

Heavy duty fixed castor 160 mm, cast iron, ball bearing, plate 135x110 mm, 900 kg, Art. 2-356 ISO
Heavy duty fixed castor with a 160 mm wheel, cast iron tread, on ball bearing. It carries 900 kg dynamic and 1120 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Heavy duty fixed castor |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | cast iron tread, 180-220 180-220 HB |
| Tread colour | black |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 900 kg |
| Load capacity, static | 1120 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 205 mm |
| Weight | 4.75 kg |
| Temperature, continuous | -40 to +130 °C |
| Temperature, short exposure (max. 10 min) | -40 to +130 °C |
| Directional lock | Optional Available versions (2)
|
Properties and use
Works at high and low temperatures and takes rough handling. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-356 ISO |
|---|---|
| SKU | 56199 |
| EAN | 3838461561993 |
