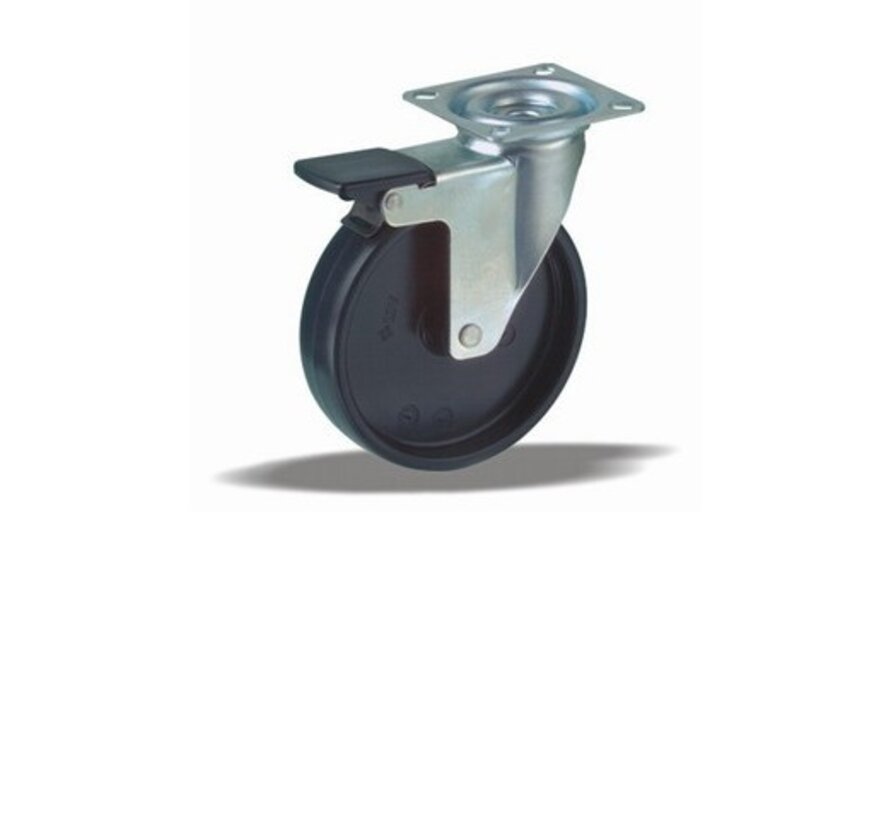

furniture Swivel castor with brake + solid polypropylene wheel Ø50 x W25mm for 60kg Prod ID: 35073

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with brake with an overall height of 68 mm
Wheel diameter x width: 50 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 60 kg
Static 70 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Essential relocation Swivel castor with brake:
✓ attractive design
✓
✓ rotating on spot

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + solid polypropylene wheel Ø50 x W25mm for 60kg Prod ID: 35073

ID 35073: Castor overall height 68 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 ° Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Es
