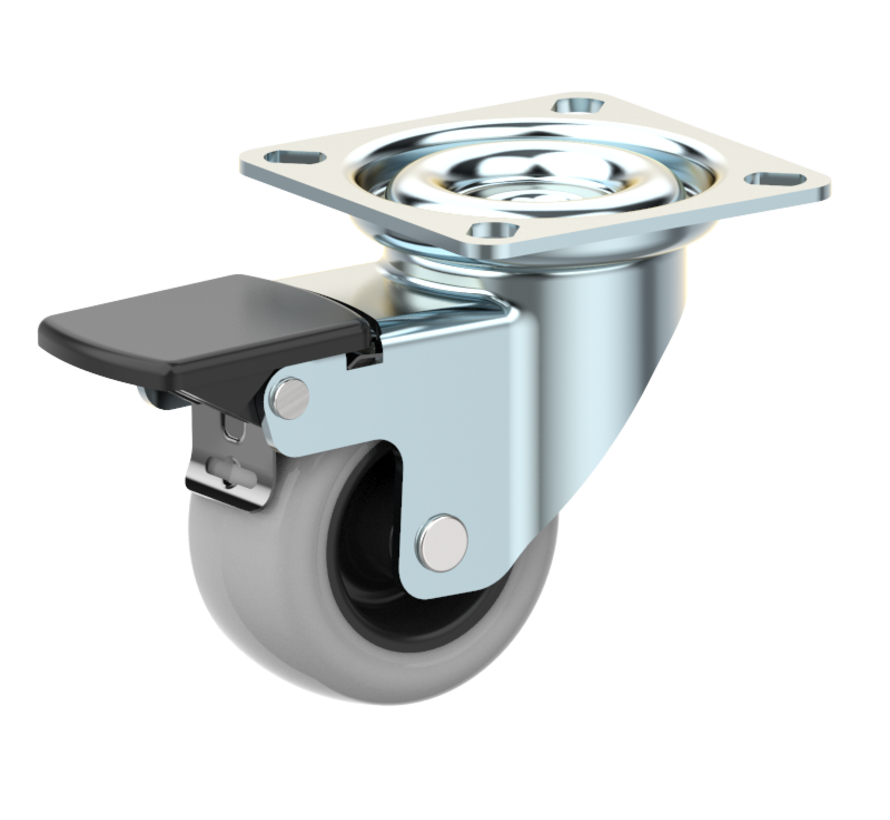

furniture Swivel castor with brake + polyethylene tread Ø50 x W25mm for 70kg Prod ID: 34815

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with brake with an overall height of 68 mm
Wheel diameter x width: 50 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 70 kg
Static 80 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Invisible foundation Swivel castor with brake:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + polyethylene tread Ø50 x W25mm for 70kg Prod ID: 34815

ID 34815: Castor overall height 68 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Invisible fo

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
