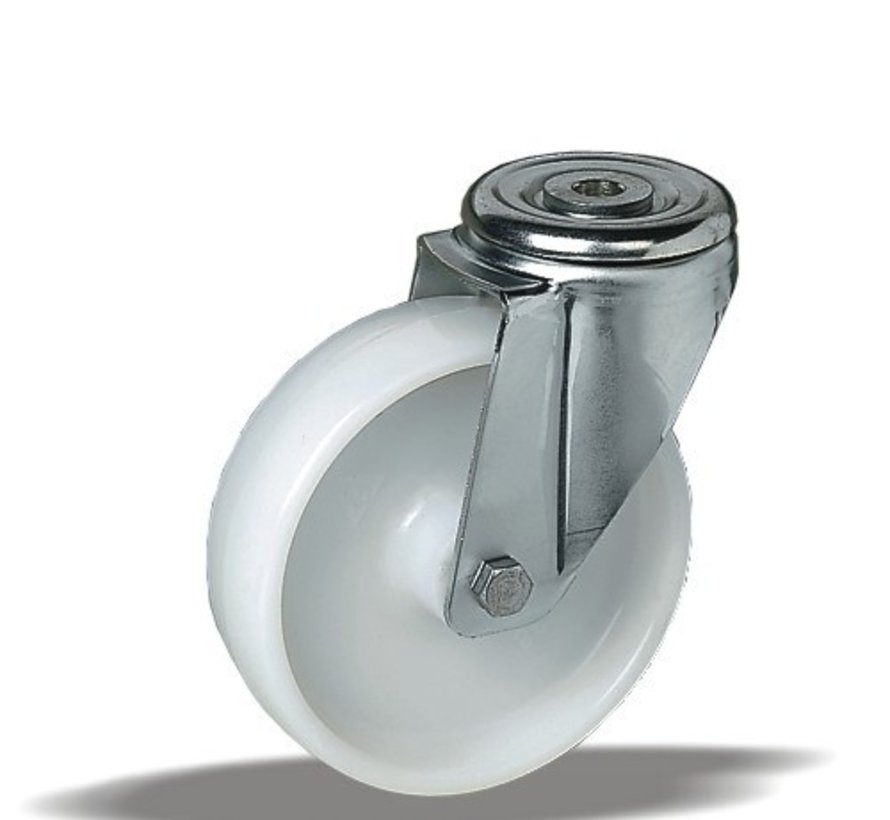

Swivel castor 100 mm, polyamide, plain bearing, bolt hole 12.5 mm, 200 kg, Art. 2-766 L12, wheel centre white
Swivel castor with a 100 mm wheel, solid polyamide wheel, on plain bearing. It carries 200 kg dynamic and 250 kg static, fixed with a 12.5 mm bolt hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Swivel castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Weight | 0.61 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
| Top plate size | 70 mm |
| Tread hardness | 70 Shore D |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-766 L12 |
|---|---|
| SKU | 34464 |
| EAN | 3838461344640 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
