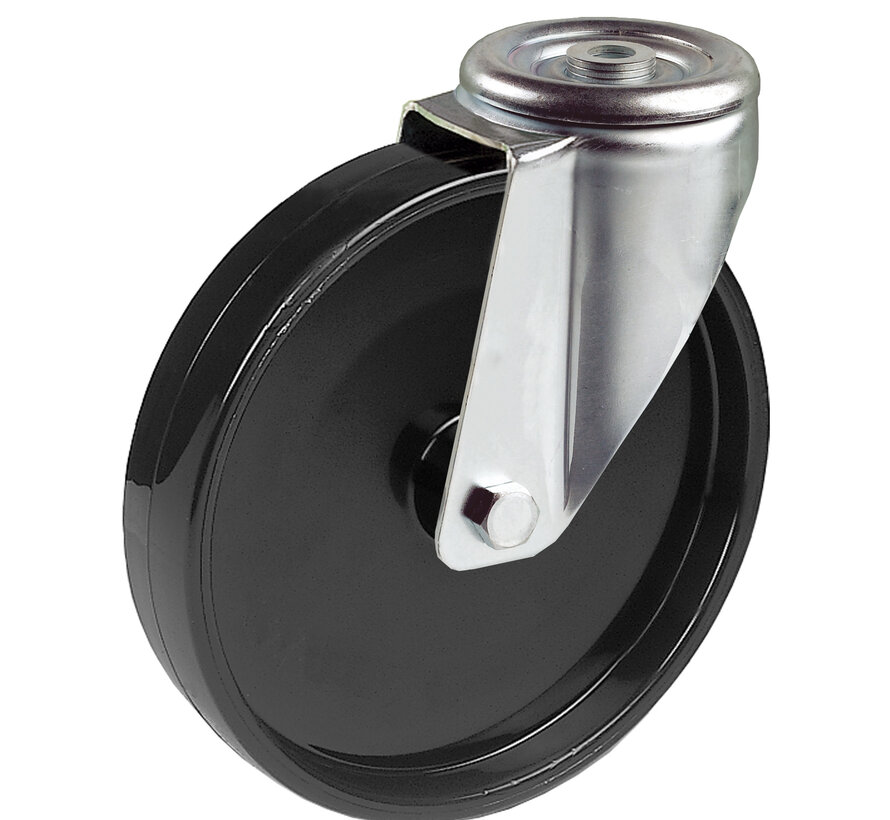

standard Swivel castor + solid polypropylene wheel Ø80 x W35mm for 100kg Prod ID: 34255

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

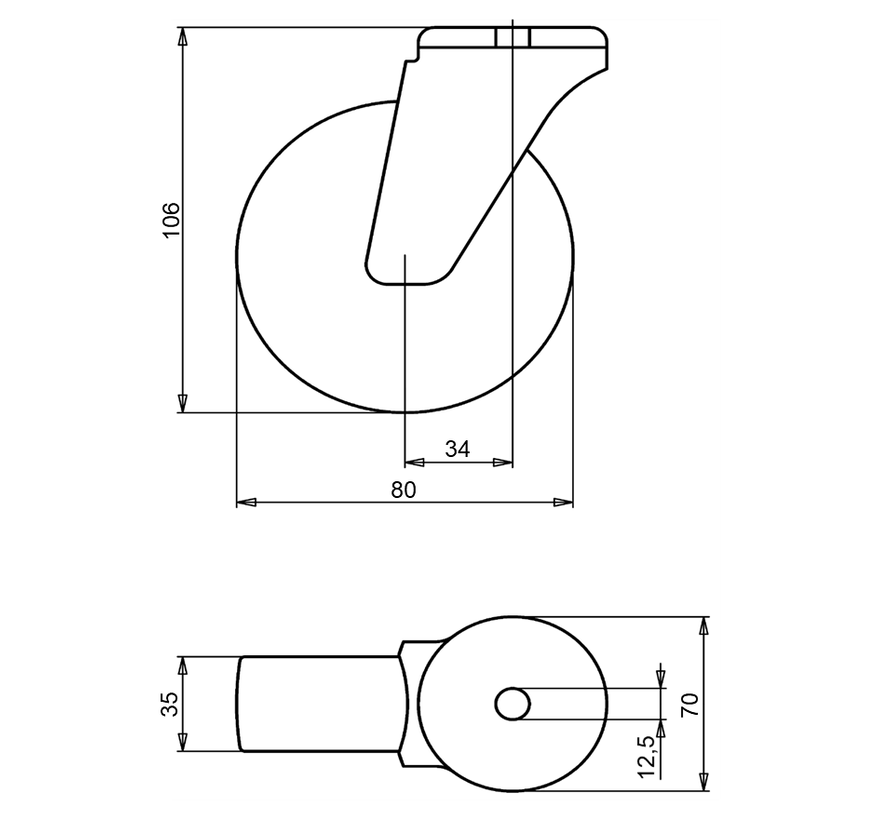

standard Swivel castor with an overall height of 106 mm
Wheel diameter x width: 80 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 Shore D.

Approved and tested load capacity
Dynamic 100 kg
Static 120 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive Swivel castor:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + solid polypropylene wheel Ø80 x W35mm for 100kg Prod ID: 34255

ID 34255: Castor overall height 106 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 Shore D | Long floor drive, for acidic environment, low wear off, low rolling resistance
