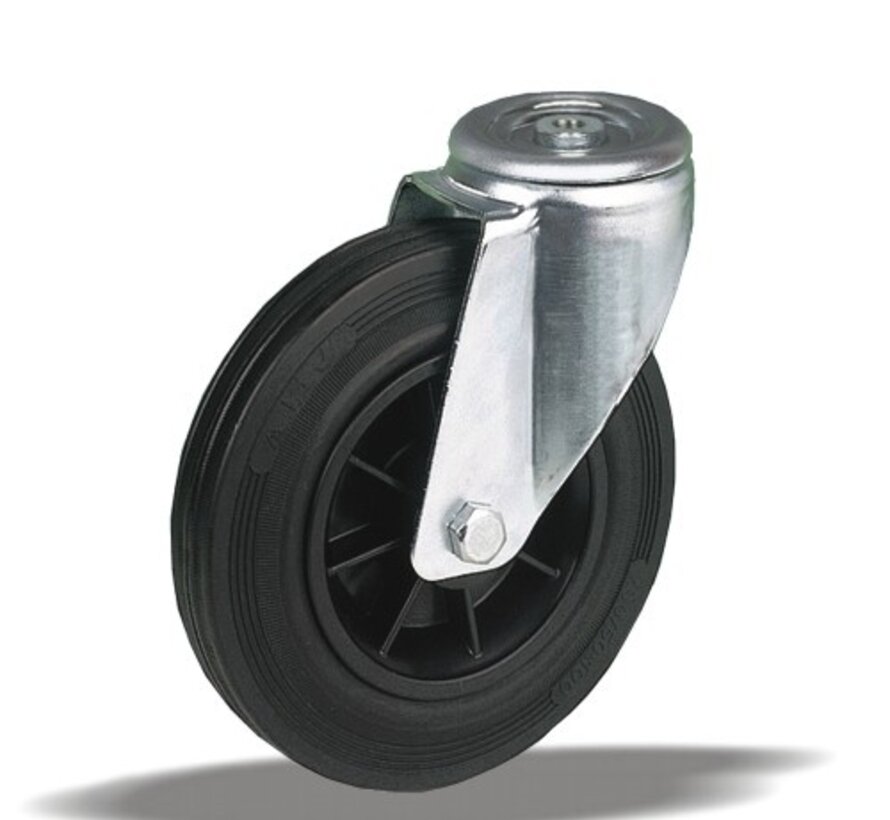

standard Swivel transport castor + black rubber tyre Ø200 x W50mm for 230kg Prod ID: 34185

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

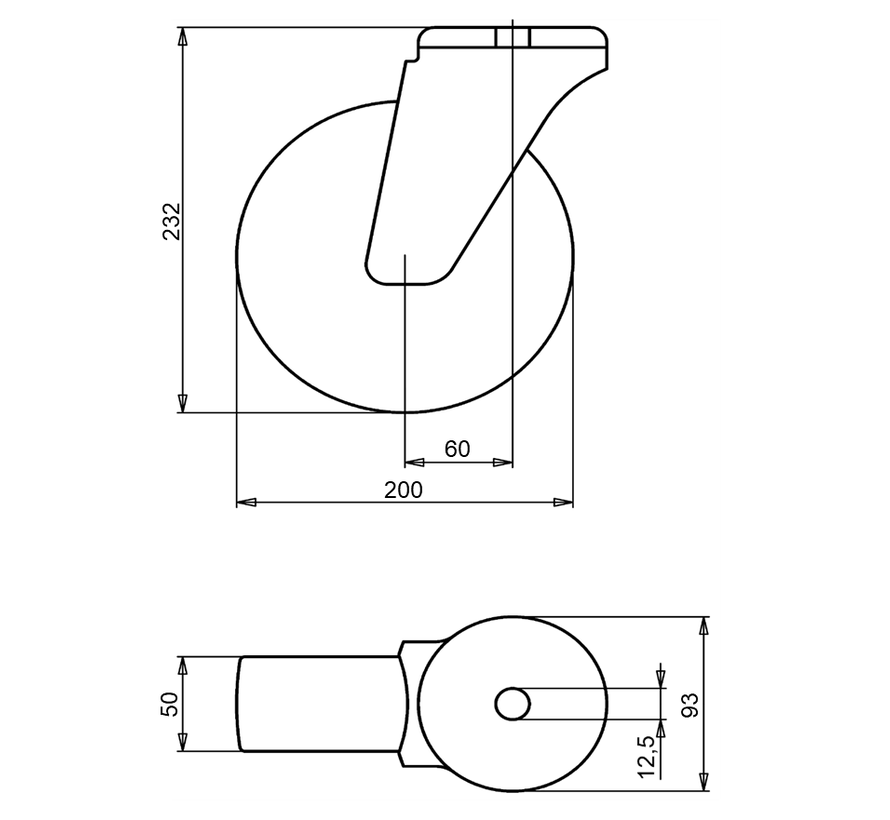

standard Swivel transport castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 230 kg
Static 280 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Smooth drive wheel Swivel transport castor:
✓ wet floor
✓ reduces the transmission of both vibration and noise
✓ with low obstacles

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel transport castor + black rubber tyre Ø200 x W50mm for 230kg Prod ID: 34185

ID 34185: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | Smooth drive wheel, for wet floor, rubber reduces the transmission of both vibration and noise, p
