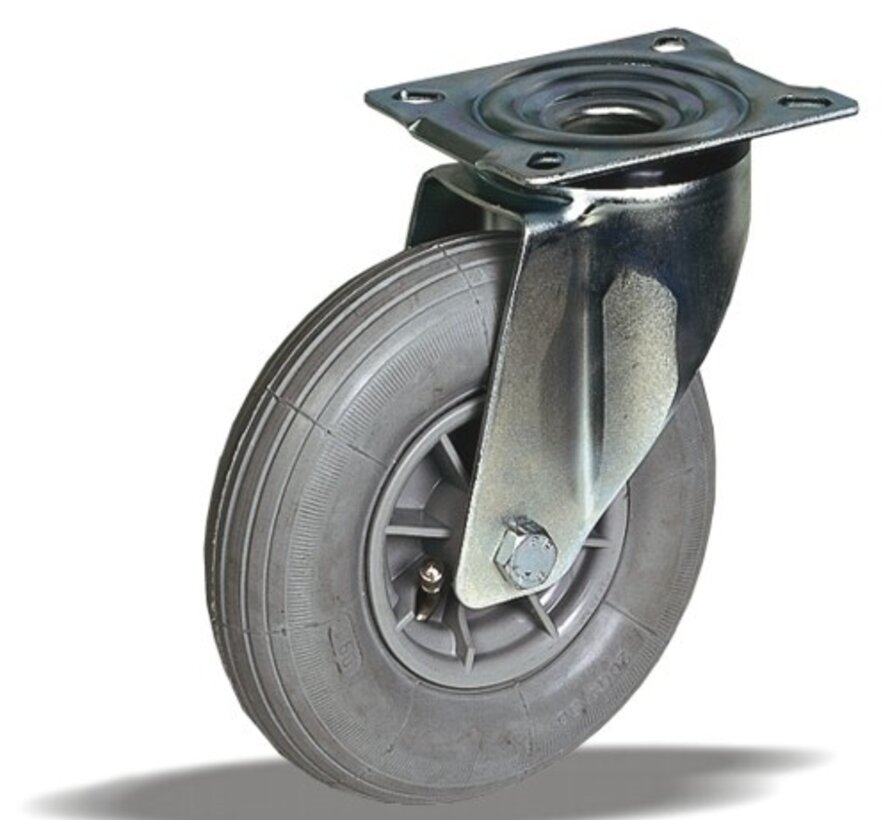

| Type | Swivel castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | grey pneumatic tyre |
| Wheel centre | polypropylene |
| Bearing | roller bearing |
| Load capacity, dynamic | 60 kg |
| Load capacity, static | 70 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 232 mm |
| Offset | 60 mm |
| Weight | 1.7 kg |
| Temperature, continuous | -5 to +60 °C |
| Temperature, short exposure (max. 10 min) | -5 to +60 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Leaves no marks on the floor. Suited to uneven ground, and the pneumatic tyre cushions shocks. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
