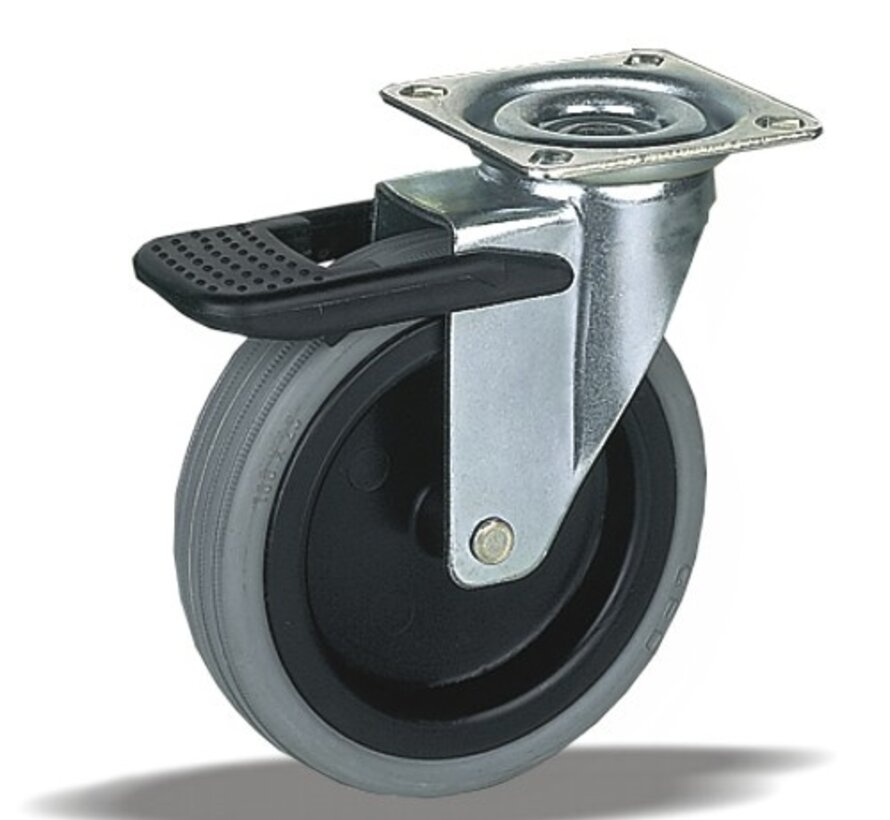

furniture Swivel castor with brake + polyethylene tread Ø100 x W25mm for 80kg Prod ID: 32325

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

furniture Swivel castor with brake with an overall height of 120 mm
Wheel diameter x width: 100 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 80 kg
Static 100 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Invisible foundation Swivel castor with brake:
✓ deformation if rarely moved
✓ markings on the floor
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + polyethylene tread Ø100 x W25mm for 80kg Prod ID: 32325

ID 32325: Castor overall height 120 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and polyethylene tread with hardness 92 ° Shore A | Invisible foundation, low deformation if rarely moved, no markings on the floor, easy to turn
