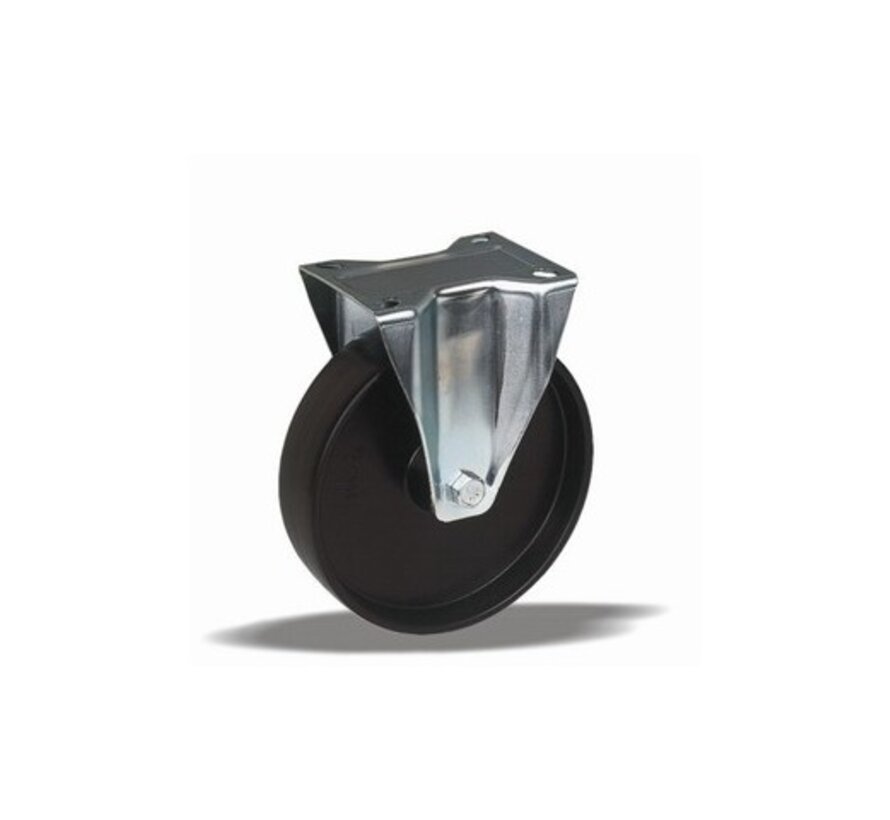

standard Fixed castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 31703

Name: standard Fixed castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 31703
Brand: LIV Systems
SKU: 31703

standard Fixed castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall Fixed castor:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

LIV SYSTEMS standard Fixed castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 31703

ID 31703: Castor overall height 128 mm | 4 mounting holes with distance 80x60 mm | Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D | Glide through the hall, good chemical resistance, high load capacity and shock impact resis
