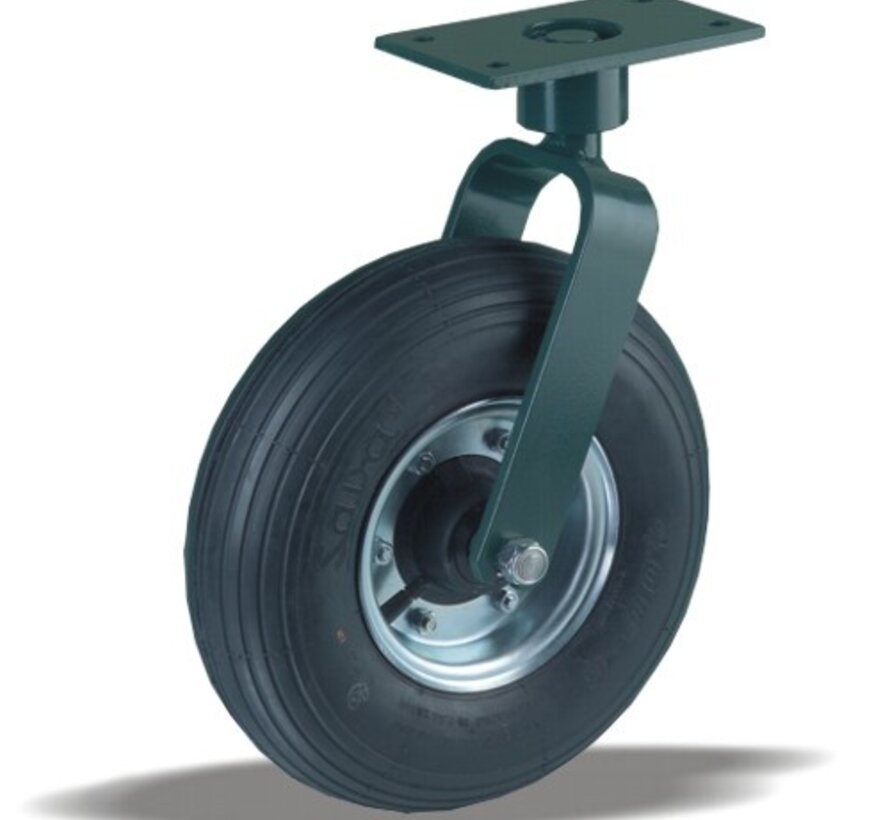

for rough floors Swivel castor + black pneumatic Ø350 x W100mm for 300kg Prod ID: 31361

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

for rough floors Swivel castor with an overall height of 450 mm
Wheel diameter x width: 350 x 100 mm
Top plate with 4 mounting holes of 13 mm, mounting hole distance 150x75 mm and top plate outer dimensions: 190x120 mm
Wheel with ball bearing and black pneumatic with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Macadam ride Swivel castor:
✓ rolls over obstacles
✓ ground adapting
✓ to manipulate

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Swivel castor + black pneumatic Ø350 x W100mm for 300kg Prod ID: 31361

ID 31361: Castor overall height 450 mm | 4 mounting holes with distance 150x75 mm | Wheel with ball bearing and black pneumatic with hardness 80 ° Shore A | Macadam ride, easily rolls over obstacles, effortless ground adapting, simple to manipulate
