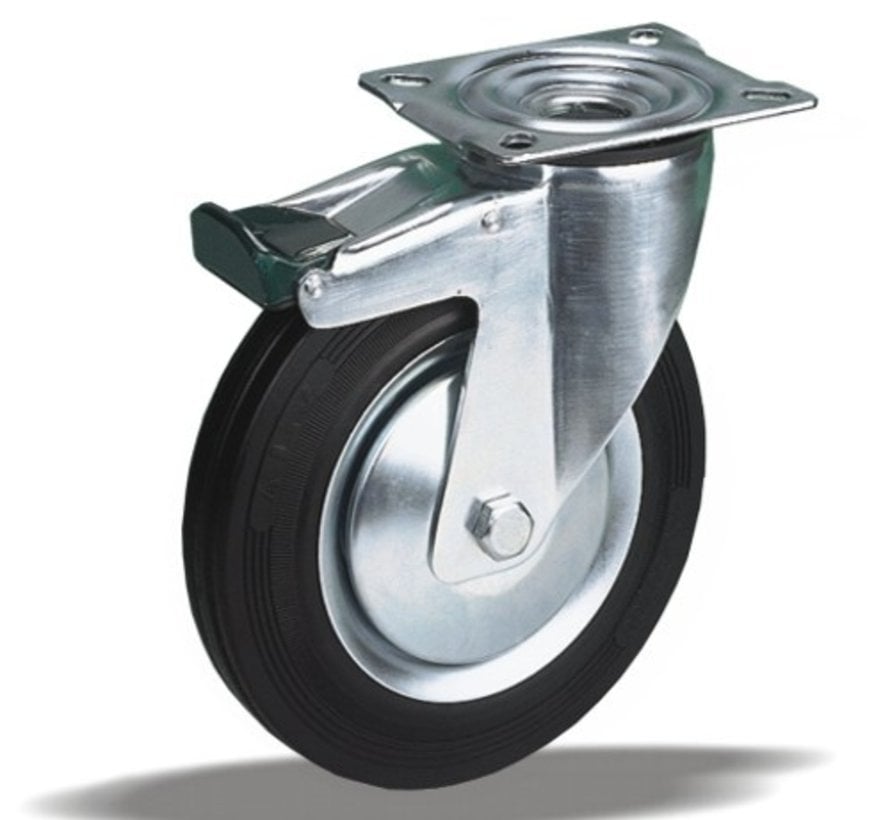

standard Swivel transport castor with brake + black rubber tyre Ø200 x W50mm for 230kg Prod ID: 30345

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel transport castor with brake with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 230 kg
Static 280 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Comfortable drive Swivel transport castor with brake:
✓ to manoeuvre
✓ performance on uneven floor or obstacles
✓ and strong wheel systems

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel transport castor with brake + black rubber tyre Ø200 x W50mm for 230kg Prod ID: 30345

ID 30345: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and black rubber tyre with hardness 80 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Comfortable
