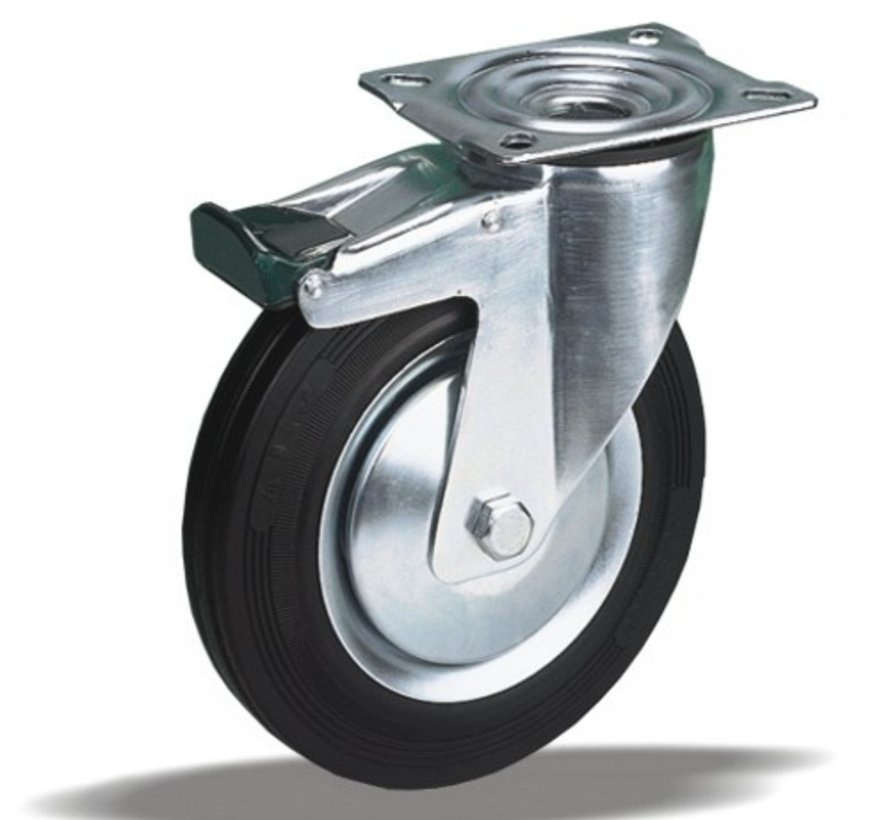

standard Swivel transport castor with brake + black rubber tyre Ø125 x W32mm for 130kg Prod ID: 30304

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel transport castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105X85 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 130 kg
Static 160 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Comfortable drive Swivel transport castor with brake:
✓ to manoeuvre
✓ performance on uneven floor or obstacles
✓ and strong wheel systems

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel transport castor with brake + black rubber tyre Ø125 x W32mm for 130kg Prod ID: 30304

ID 30304: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Comfortable
