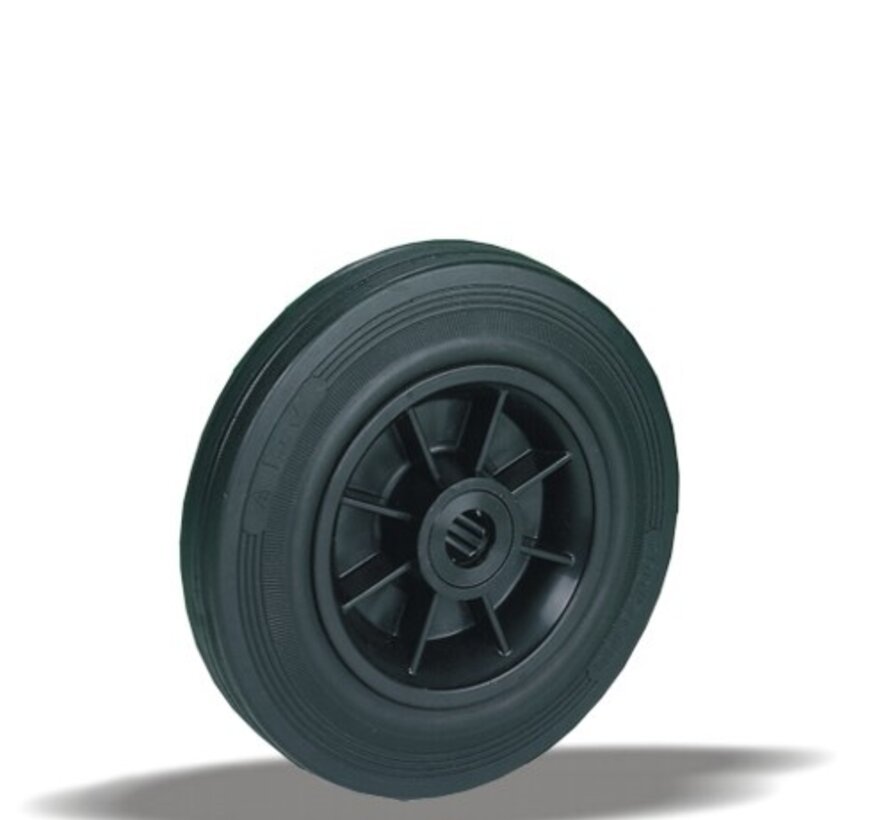

Wheel 200 mm, black rubber, plain bearing, axle hole 20 mm, 230 kg, Art. 2-948 ISO
Wheel, 200 mm wheel diameter, black rubber tread, running on plain bearing. Rated load is 230 kg dynamic, 280 kg static, with a 20 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 230 kg |
| Load capacity, static | 280 kg |
| Axle hole | 20 mm |
| Weight | 1.4 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Fitting | Wheel hub |
| Hub length | 58 mm |
Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Suited to wet floors and low obstacles. The rubber tyre damps vibration and noise. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-948 ISO |
|---|---|
| SKU | 91054 |
| EAN | 3838461910548 |
