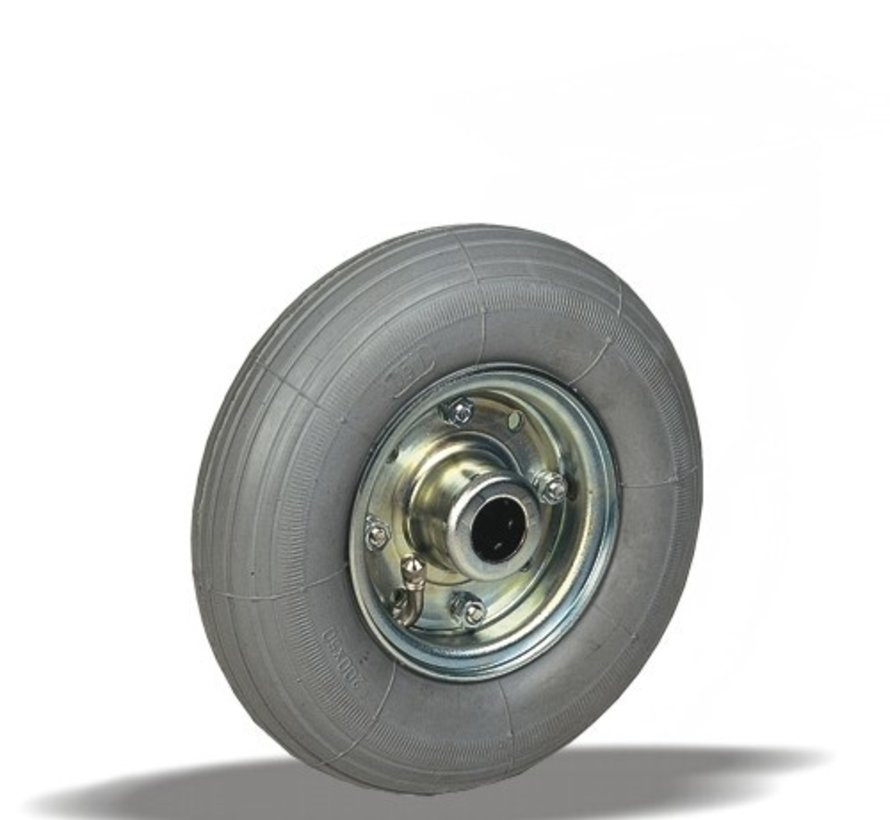

| Type | Wheel |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | grey pneumatic tyre |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 75 kg |
| Load capacity, static | 90 kg |
| Axle hole | 20 mm |
| Weight | 0.6 kg |
| Temperature, continuous | -5 to +60 °C |
| Temperature, short exposure (max. 10 min) | -5 to +60 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Passes obstacles gently and leaves the floor unmarked. Suited to crushed stone ground. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
