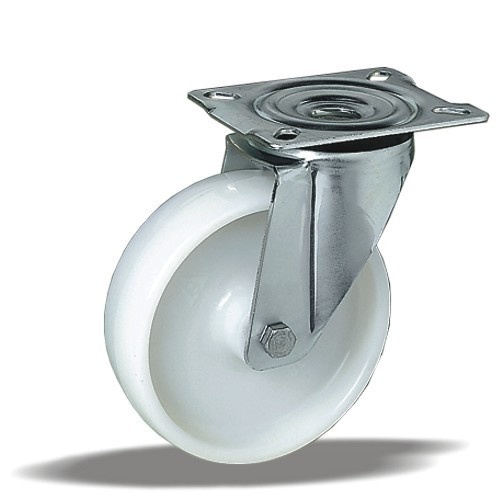

standard Swivel castor + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 66855

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 Shore D.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive Swivel castor:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 66855

ID 66855: Castor overall height 180 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and solid polypropylene wheel with hardness 60±5 Shore D | Long floor drive, for acidic environment, low wear off, low rolling resistance
