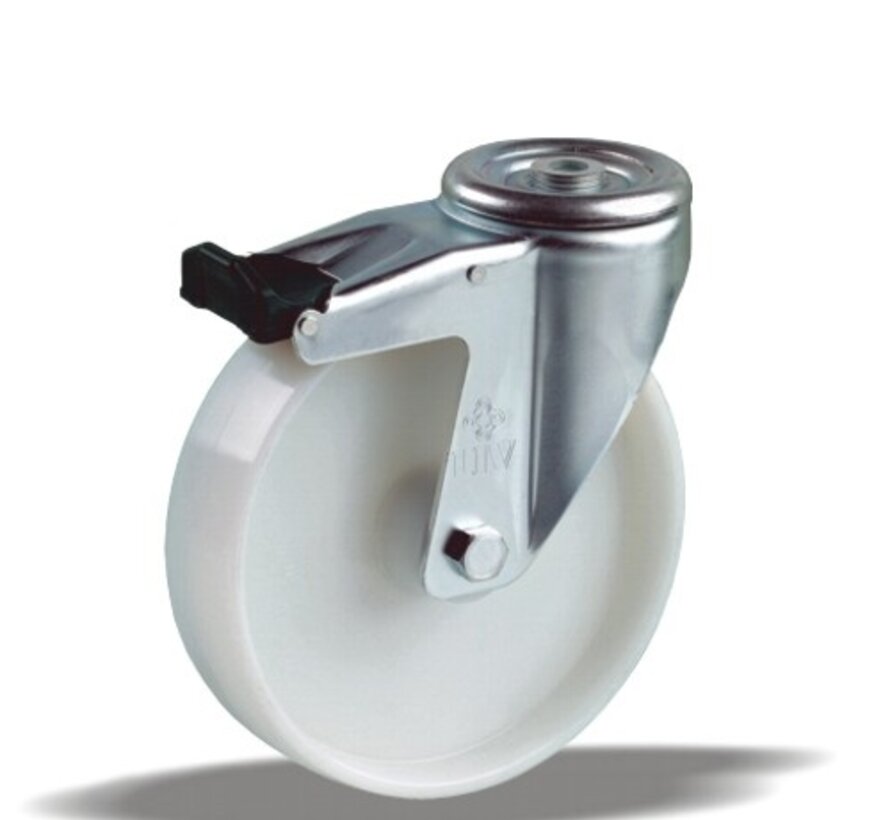

standard Swivel castor with brake + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 34603

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive Swivel castor with brake:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polypropylene wheel Ø150 x W46mm for 250kg Prod ID: 34603

ID 34603: Castor overall height 180 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and solid polypropylene wheel with hardness 60±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Long
