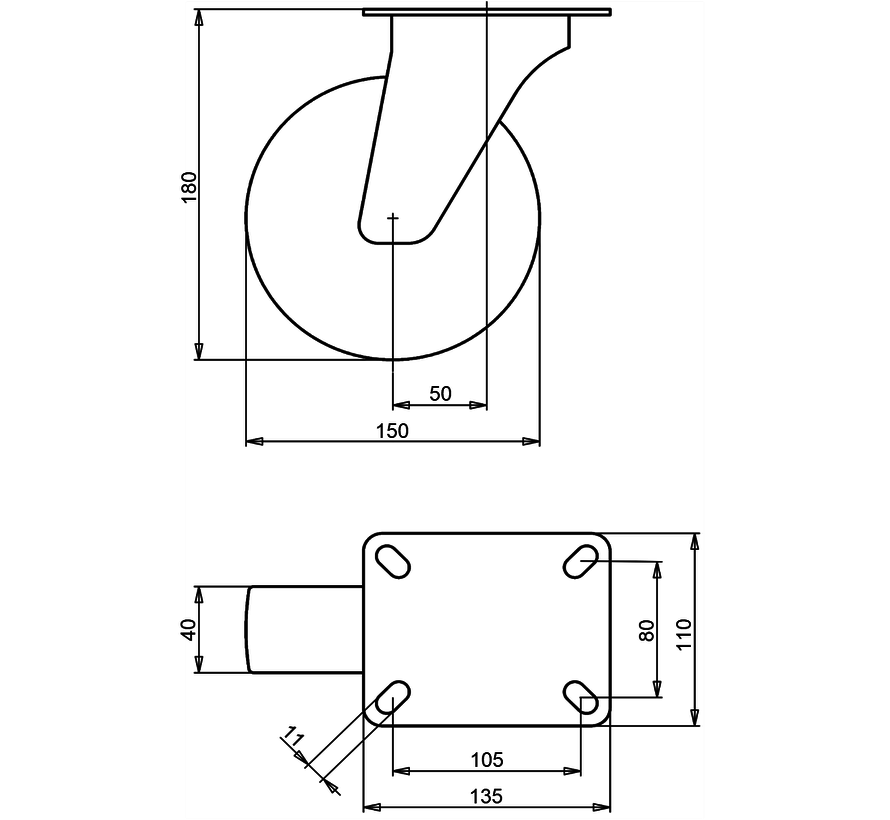

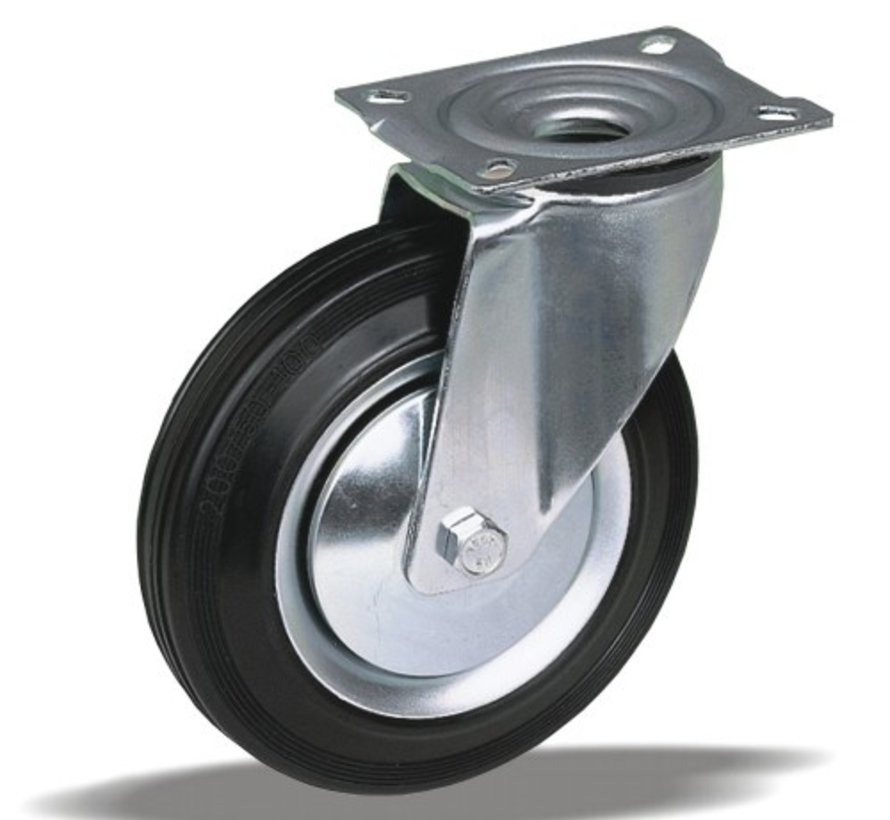

Swivel transport castor 150 mm, black rubber, plain bearing, plate 135x110 mm, 170 kg, Art. 2-348 ISO

Swivel transport castor, 150 mm wheel diameter, black rubber tread, running on plain bearing. Rated load is 170 kg dynamic, 210 kg static, mounted on a 135x110 mm top plate with hole distance 105x80 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel transport castor
Wheel diameter150 mm
Wheel width40 mm
Treadblack rubber tread, 80 Shore A
Tread colourblack
Wheel centresteel, zinc electroplated, Cr(VI)-free
Bearingplain bearing
Load capacity, dynamic170 kg
Load capacity, static210 kg
Top plate135x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height180 mm
Offset50 mm
Weight1.85 kg
Temperature, continuous-20 to +70 °C
Temperature, short exposure (max. 10 min)-30 to +80 °C

Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.

Properties and use

Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
