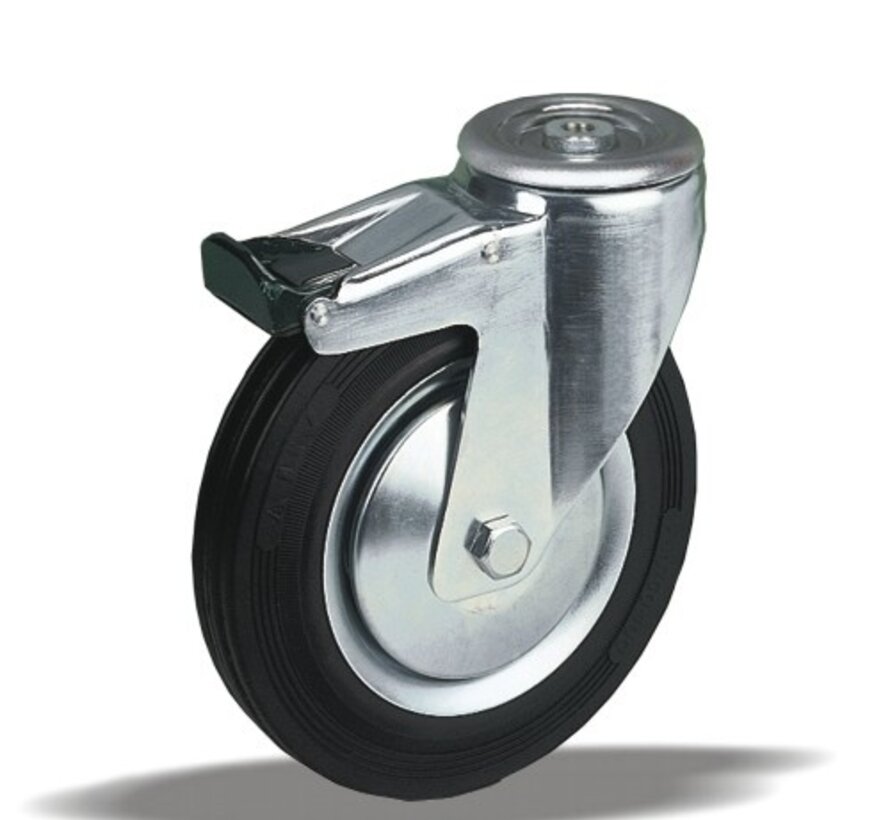

Swivel transport castor with total lock 150 mm, black rubber, roller bearing, bolt hole 12.5 mm, 170 kg, Art. 2-609 L12
Swivel transport castor with total lock, 150 mm wheel diameter, black rubber tread, running on roller bearing. Rated load is 170 kg dynamic, 210 kg static, fixed with a 12.5 mm bolt hole. The total lock brakes the rotation of the wheel and the swivel head.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Swivel transport castor with total lock |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 40 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | roller bearing |
| Load capacity, dynamic | 170 kg |
| Load capacity, static | 210 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 180 mm |
| Offset | 50 mm |
| Brake | total lock (locks wheel and swivel) |
| Weight | 1.85 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Top plate size | 93 mm |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

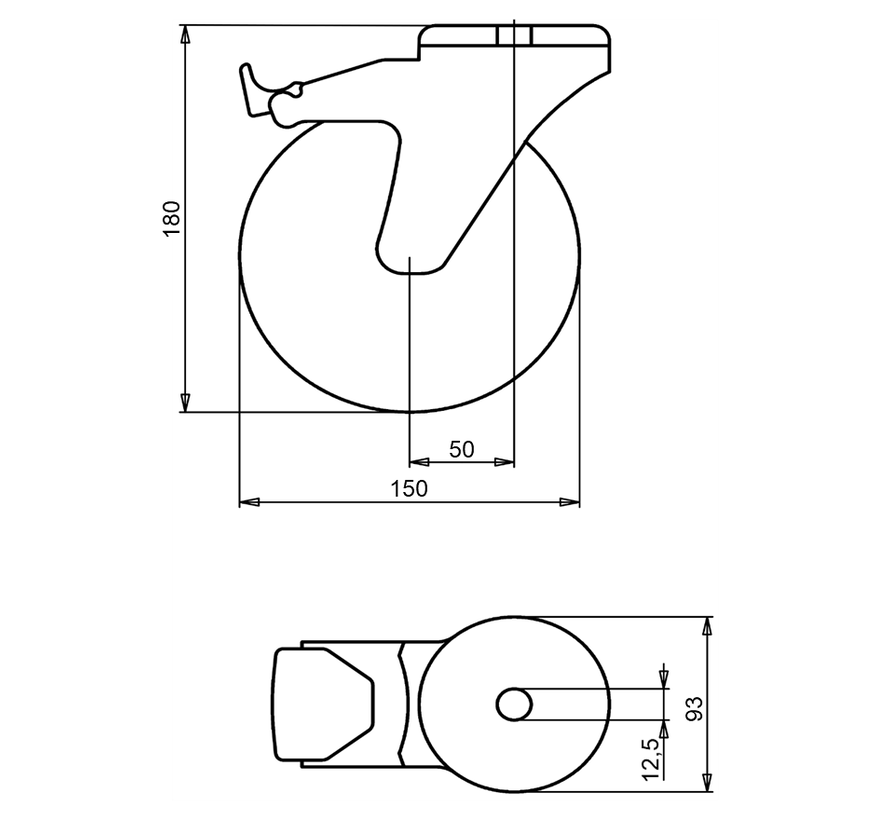

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-609 L12 |
|---|---|
| SKU | 34084 |
| EAN | 3838461340840 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
