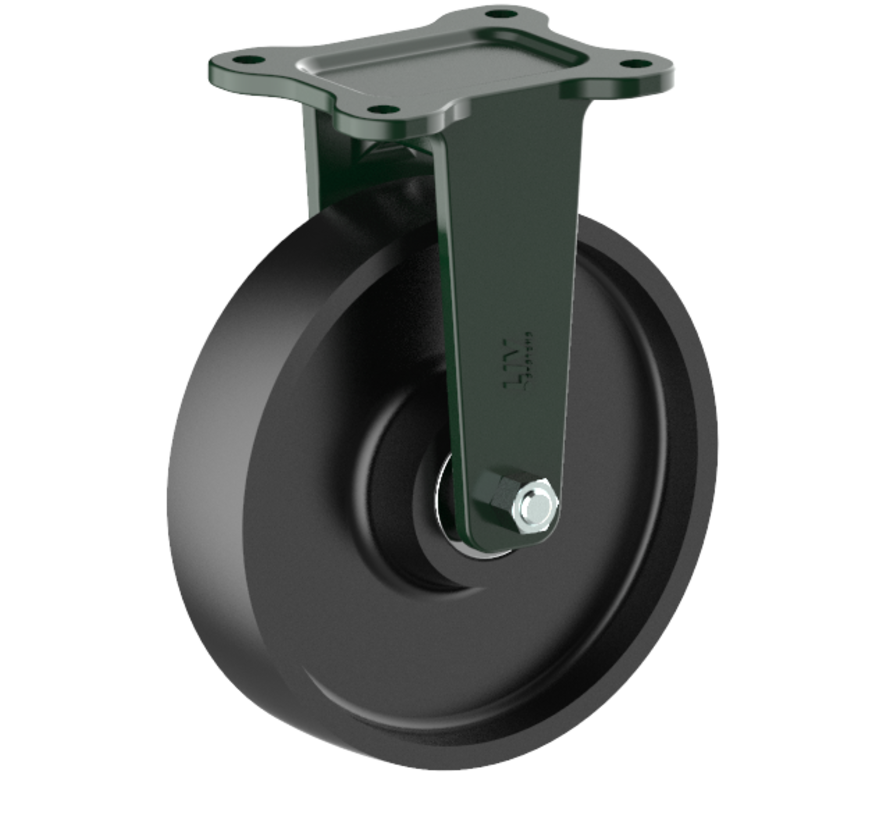

heavy duty Fixed castor + solid cast iron wheel Ø200 x W50mm for 1100kg Prod ID: 56209

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Fixed castor with an overall height of 245 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and solid cast iron wheel with hardness 180-220 ° 180-220 HB.

Approved and tested load capacity
Dynamic 1100 kg
Static 1370 kg

Temperature range:
Continious operation: -40 |+130°C
Short (10 min) exposure: -40 |+130°C

Advantages of this titanic move Fixed castor:
✓ high and low temperatures
✓ robust handling
✓ proof

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Fixed castor + solid cast iron wheel Ø200 x W50mm for 1100kg Prod ID: 56209

ID 56209: Castor overall height 245 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and solid cast iron wheel with hardness 180-220 ° 180-220 HB | titanic move, for high and low temperatures, for robust handling, damage proof
