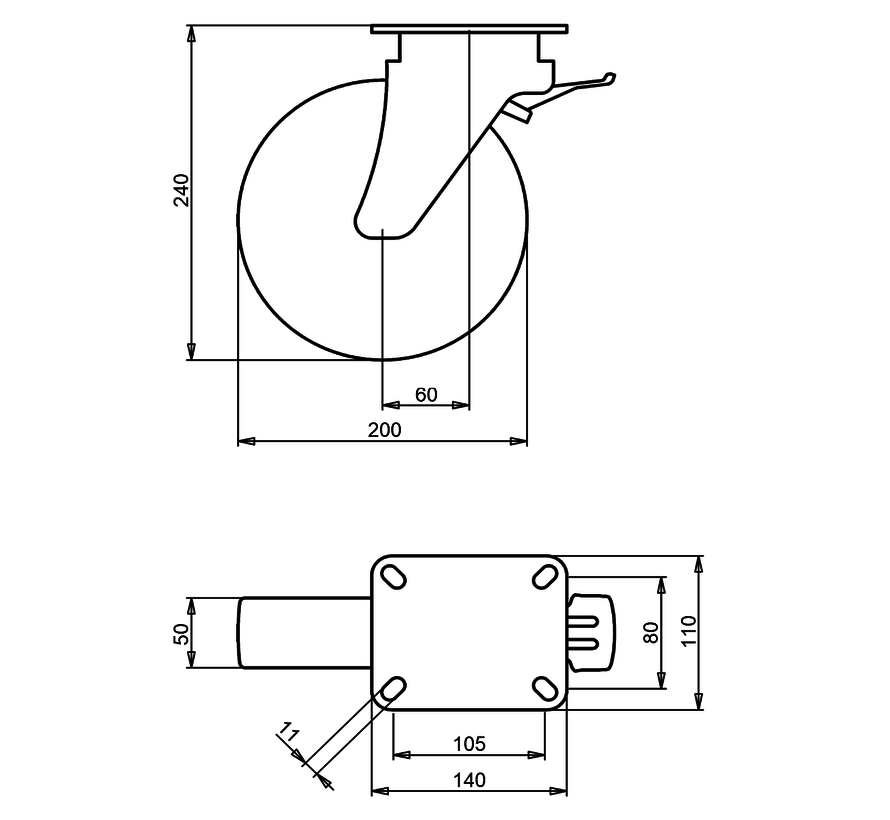

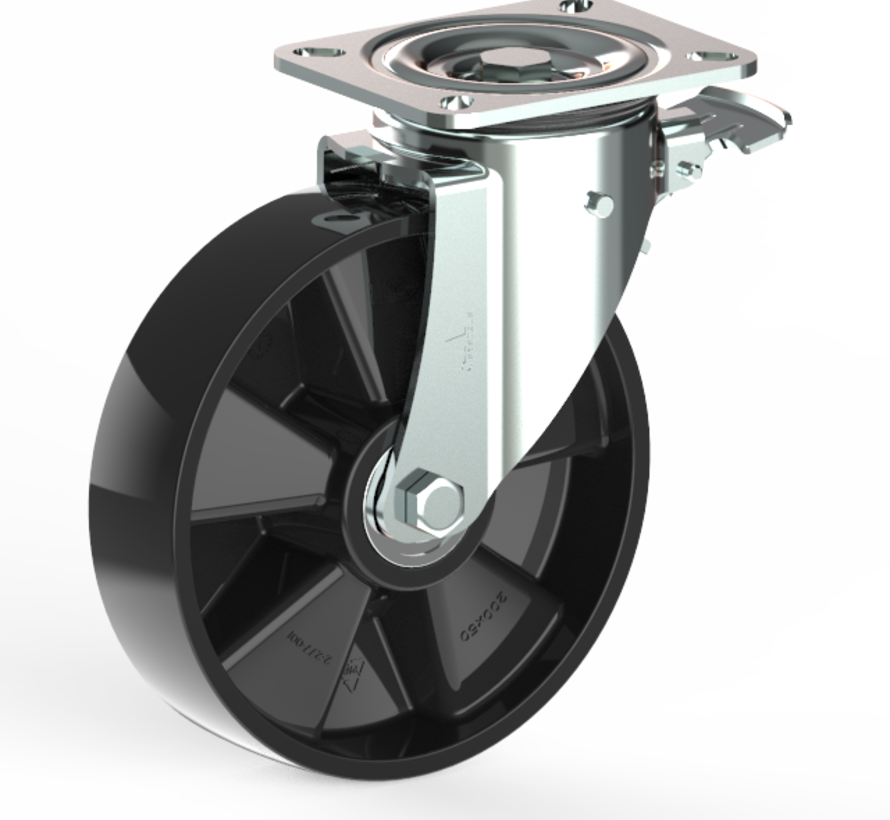

Heavy duty swivel castor with total lock 200 mm, polyamide, ball bearing, plate 140x110 mm, 500 kg, Art. 2-063-40K, wheel centre black

Heavy duty swivel castor with total lock, 200 mm wheel diameter, solid polyamide wheel, running on ball bearing. Rated load is 500 kg dynamic, 620 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeHeavy duty swivel castor with total lock
Wheel diameter200 mm
Wheel width50 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingball bearing
Load capacity, dynamic500 kg
Load capacity, static620 kg
Top plate140x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height240 mm
Offset60 mm
Braketotal lock (locks wheel and swivel)
Directional lockoptional
Available versions (2)
  • Long pedal
  • Short pedal
Weight2.95 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
