heat resistant Swivel castor + solid heat resistant polyamide wheel Ø100 x W35mm for 170kg Prod ID: 44912

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

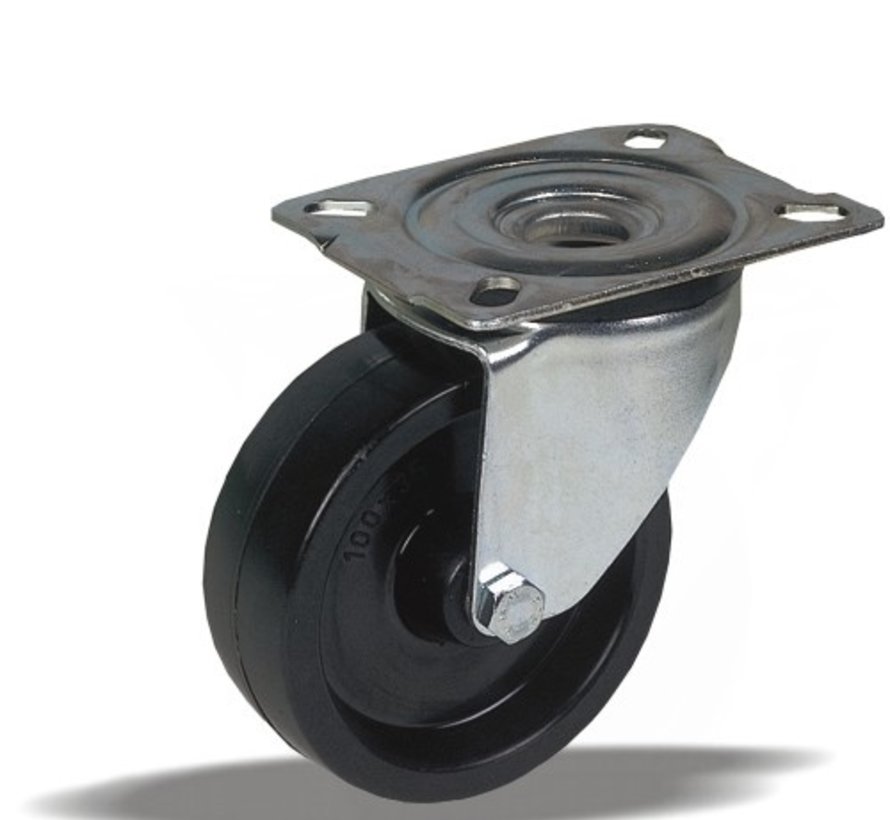

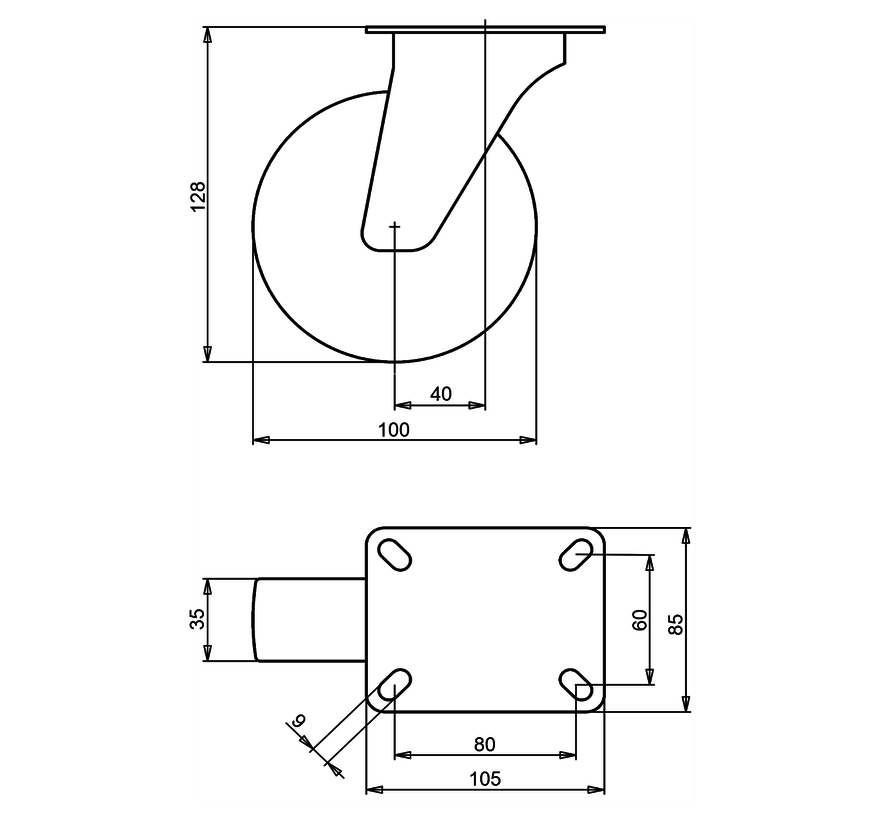

Heat resistant Swivel castor with an overall height of 128 mm.
Wheel diameter x width: 100 x 35 mm.
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80 x 60 mm and top plate outer dimensions: 105 x 85 mm.
Wheel with plain bearing and solid heat resistant polyamide wheel with hardness 85±5 ° Shore D.

Approved and tested load capacity:
Dynamic: 170 kg
Static: 210 kg

Temperature range:
Continious operation: -25 | +250°C
Short (10 min) exposure: -40 | +300°C

Advantages of rotation of Swivel castor at higher temperatures:
✓ to 300°C
✓ for bakeries
✓ material endurance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heat resistant Swivel castor + solid heat resistant polyamide wheel Ø100 x W35mm for 170kg Prod ID: 44912

ID 44912: Castor overall height 128 mm | 4 mounting holes with distance 80x60 mm | Wheel with plain bearing and solid heat resistant polyamide wheel with hardness 85±5 ° Shore D | Roll into hot destination, up to 300°C, ideal for bakeries, high material
