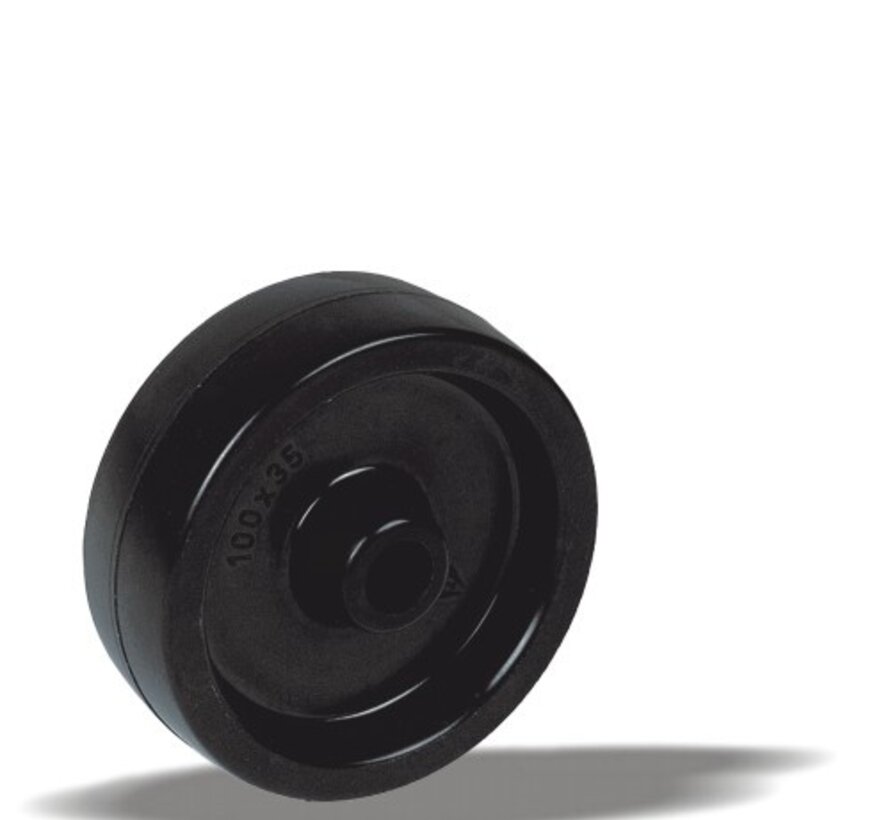

| Type | Wheel |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | heat-resistant solid polyamide wheel, 85±5 Shore D |
| Wheel centre | heat-resistant polyamide |
| Bearing | ball bearing |
| Load capacity, dynamic | 170 kg |
| Load capacity, static | 210 kg |
| Axle hole | 12 mm |
| Weight | 0.22 kg |
| Temperature, continuous | -25 to +250 °C |
| Temperature, short exposure (max. 10 min) | -40 to +300 °C |
Properties and use
Built for heat and used in bakeries. The continuous and short-term temperatures are in the table. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
