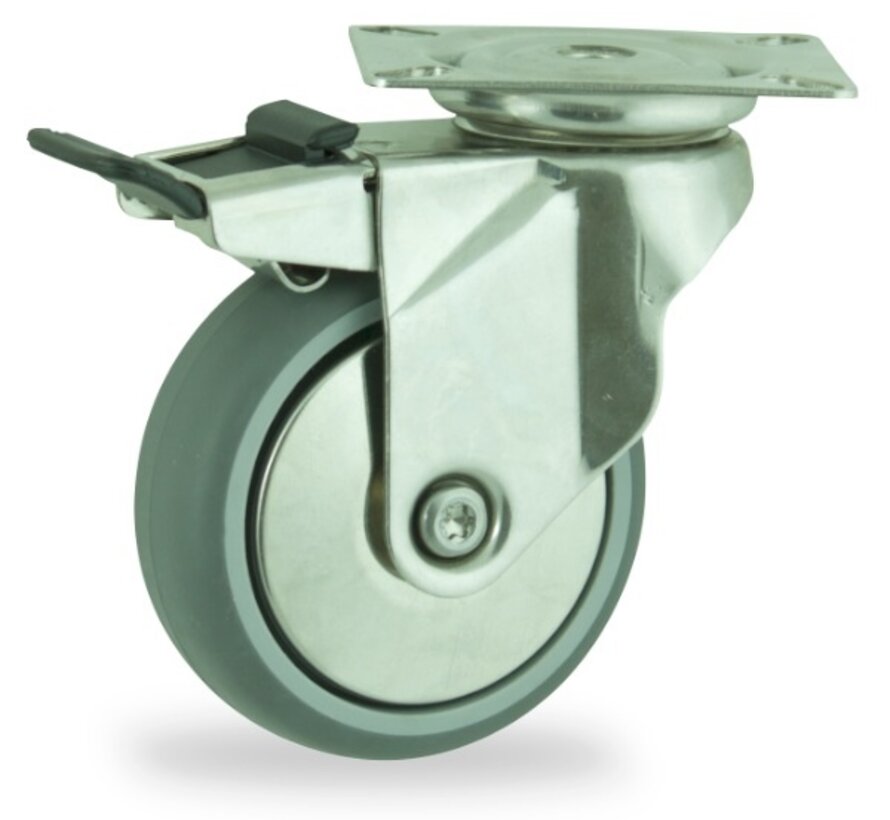

institutianal Swivel castor with brake + polyethylene tread Ø125 x W32mm for 100kg Prod ID: 44823

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

institutianal Swivel castor with brake with an overall height of 156 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 56x46 mm and top plate outer dimensions: 77x67 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 100 kg
Static 120 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Graceful moving Swivel castor with brake:
✓ proof
✓ no marks on the floor
✓ rotation

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS institutianal Swivel castor with brake + polyethylene tread Ø125 x W32mm for 100kg Prod ID: 44823

ID 44823: Castor overall height 156 mm | 4 mounting holes with distance 56x46 mm | Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Graceful mov
