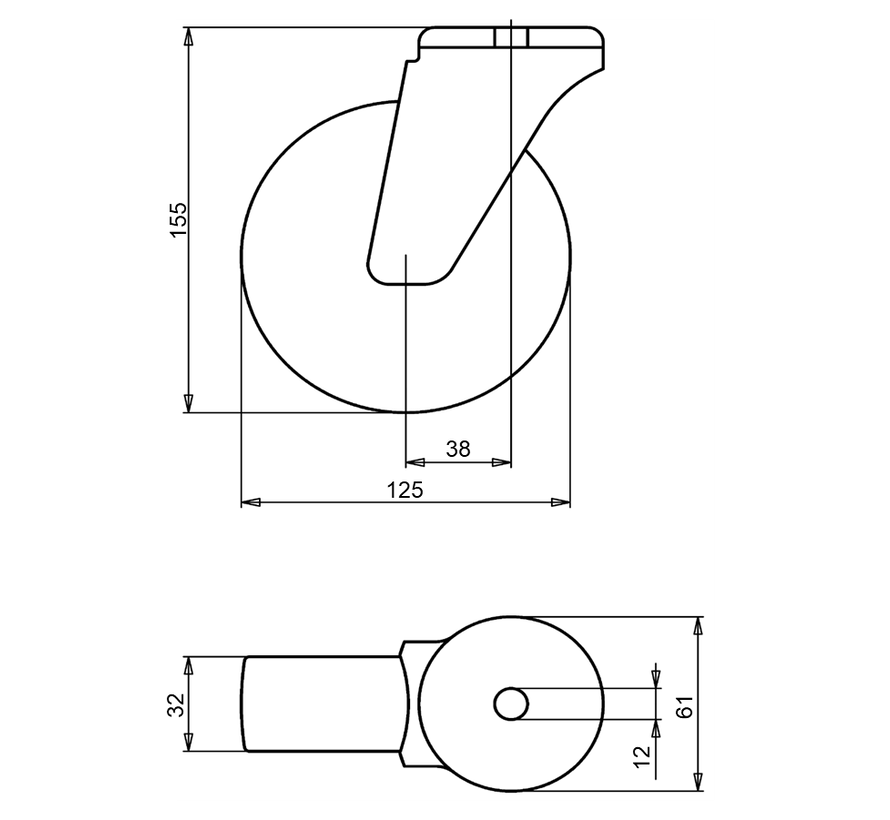

| Type | Institutional swivel castor |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 32 mm |
| Tread | solid polypropylene wheel, 60±5 Shore D |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | ball bearing |
| Load capacity, dynamic | 100 kg |
| Load capacity, static | 120 kg |
| Fitting | single bolt hole |
| Hole diameter | 12 mm |
| Overall height | 155 mm |
| Offset | 38 mm |
| Weight | 0.85 kg |
| Temperature, continuous | -20 to +60 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Dust-proof and leaves no trail on the floor. Turns easily. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
