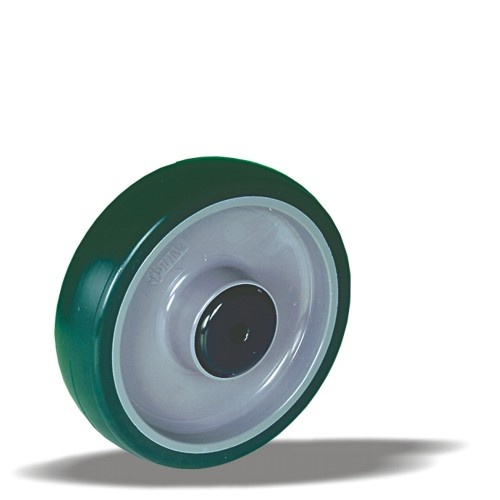

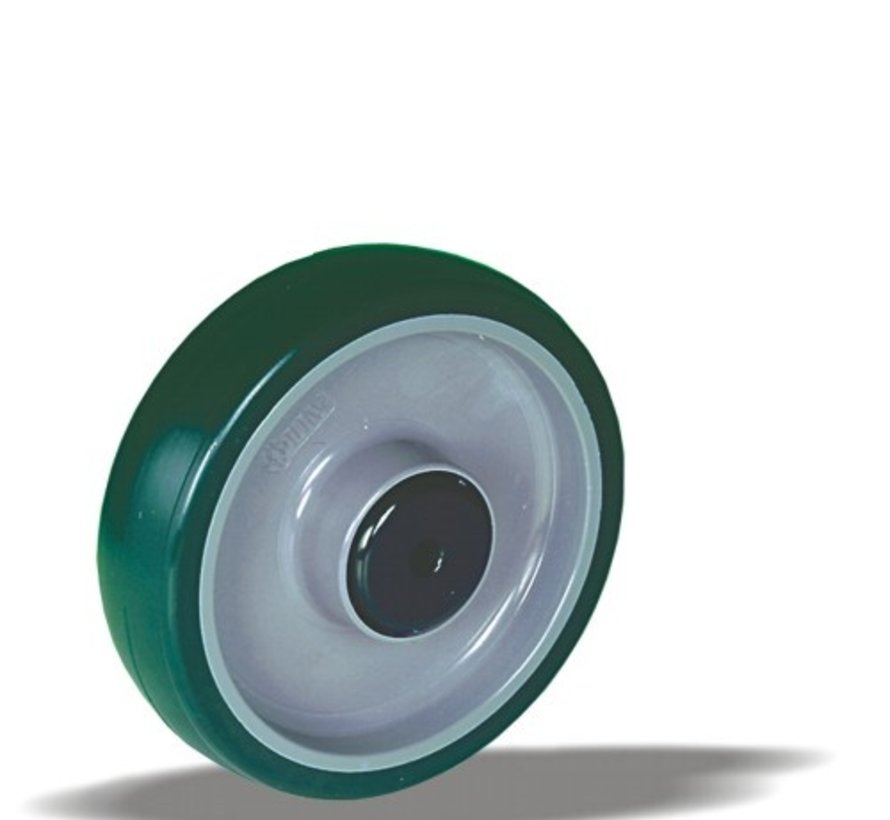

Stainless steel wheel 100 mm, polyurethane, roller bearing, axle hole 8.5 mm, 150 kg, Art. 2-050-20V
Stainless steel wheel with a 100 mm wheel, polyurethane tread, on roller bearing. It carries 150 kg dynamic and 180 kg static, with a 8.5 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Stainless steel wheel |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Axle hole | 8.5 mm |
| Weight | 0.27 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -30 to +55 °C |
| Fitting | Wheel hub |
| Hub length | 44 mm |
| Tread material | Injection-moulded polyurethane |
Properties and use
Little deformation when the unit stands still, and oil resistant. The temperature range is wide, see the table. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-050-20V |
|---|---|
| SKU | 42945 |
| EAN | 3838461429453 |
