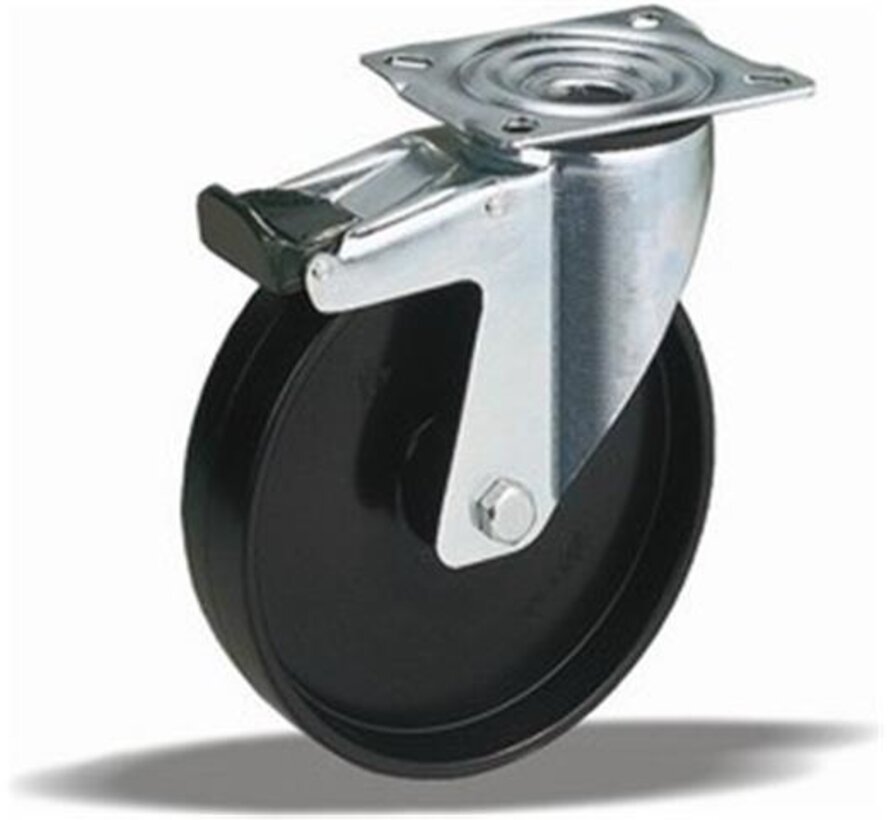

Swivel castor with total lock 100 mm, polyamide, ball bearing, plate 105x85 mm, 200 kg, product code 42813

Swivel castor with total lock with a 100 mm wheel, solid polyamide wheel, on ball bearing. It carries 200 kg dynamic and 250 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeSwivel castor with total lock
Wheel diameter100 mm
Wheel width38 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingball bearing
Load capacity, dynamic200 kg
Load capacity, static250 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height128 mm
Offset40 mm
Braketotal lock (locks wheel and swivel)
Weight0.68 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Polyamide resists many chemicals, carries high loads and takes shock impact. It tolerates large temperature swings. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
