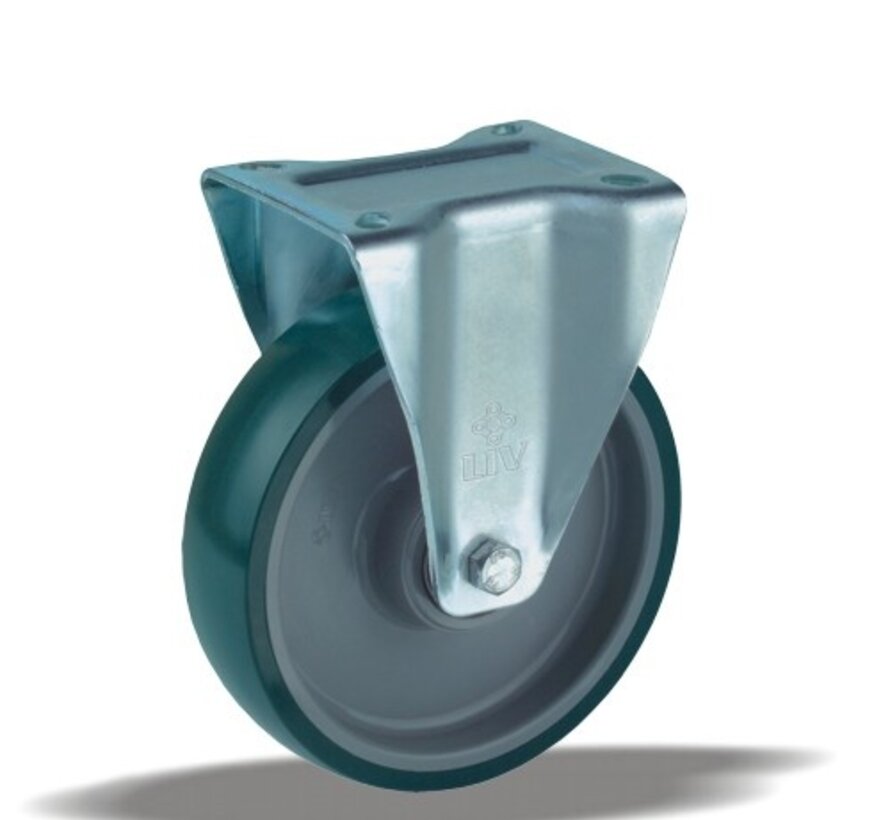

heavy duty Fixed castor + injection-moulded polyurethane tread Ø200 x W50mm for 500kg Prod ID: 42634

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Fixed castor with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 500 kg
Static 620 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this Power ride Fixed castor:
✓ chemical resistance
✓ surface pressure
✓ force to start

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Fixed castor + injection-moulded polyurethane tread Ø200 x W50mm for 500kg Prod ID: 42634

ID 42634: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | Power ride, wide chemical resistance, small surface pressure, low force to
