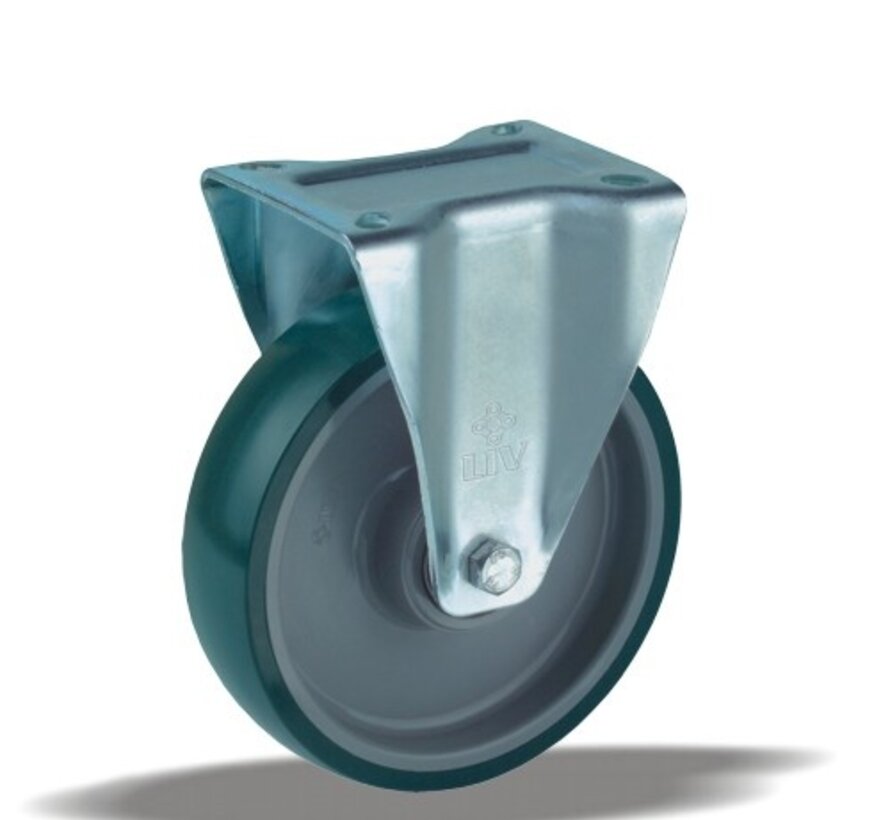

Heavy duty fixed castor 200 mm, polyurethane, roller bearing, plate 140x110 mm, 500 kg, Art. 2-081-40V
Heavy duty fixed castor with a 200 mm wheel, polyurethane tread, on roller bearing. It carries 500 kg dynamic and 620 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Heavy duty fixed castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Weight | 2.35 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -30 to +55 °C |
| Tread material | Injection-moulded polyurethane |
| Directional lock | Optional Available versions (2)
|
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Resists a wide range of chemicals. The polyurethane tread puts little pressure on the floor and the castor starts with low force. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-081-40V |
|---|---|
| SKU | 42633 |
| EAN | 3838461426339 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
