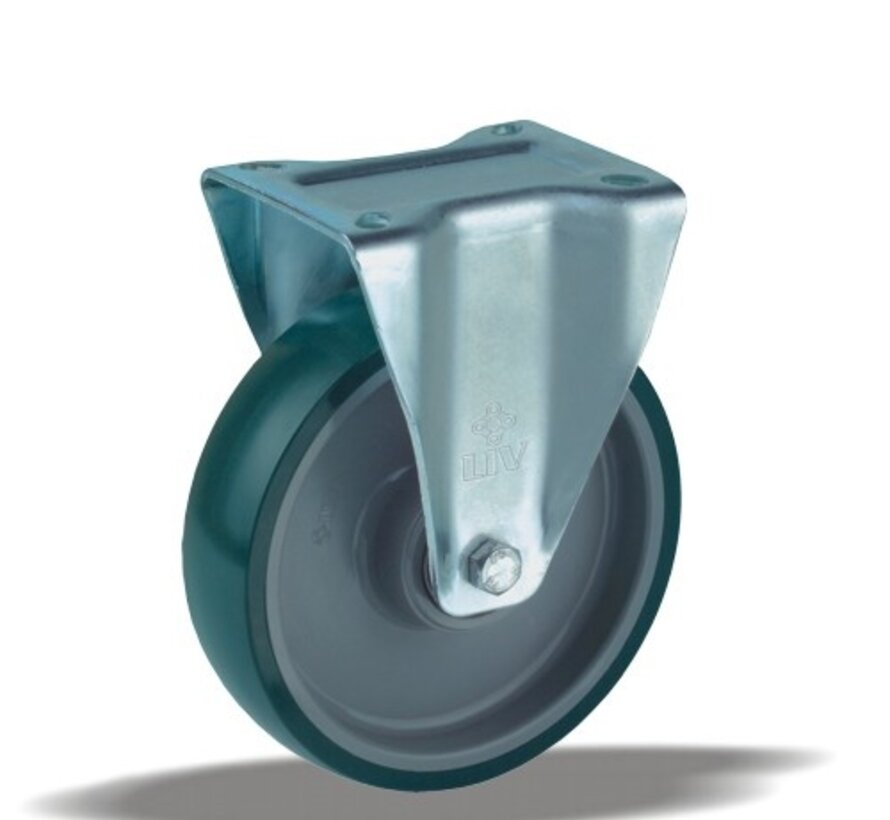

Heavy duty fixed castor 160 mm, polyurethane, plain bearing, plate 140x110 mm, 400 kg, product code 42624

Heavy duty fixed castor with a 160 mm wheel, polyurethane tread, on plain bearing. It carries 400 kg dynamic and 500 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeHeavy duty fixed castor
Wheel diameter160 mm
Wheel width50 mm
Treadpolyurethane tread, 92 Shore A
Tread colourgreen
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic400 kg
Load capacity, static500 kg
Top plate140x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height200 mm
Weight1.75 kg
Temperature, continuous-25 to +55 °C
Temperature, short exposure (max. 10 min)-30 to +55 °C
Tread materialInjection-moulded polyurethane
Directional lockOptional
Available versions (2)
  • Long pedal
  • Short pedal

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Resists a wide range of chemicals. The polyurethane tread puts little pressure on the floor and the castor starts with low force. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
