heavy duty Swivel castor with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.
Approved and tested load capacity
Dynamic 400 kg
Static 500 kg
Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C
Advantages of this Power ride Swivel castor:
✓ chemical resistance
✓ surface pressure
✓ force to start

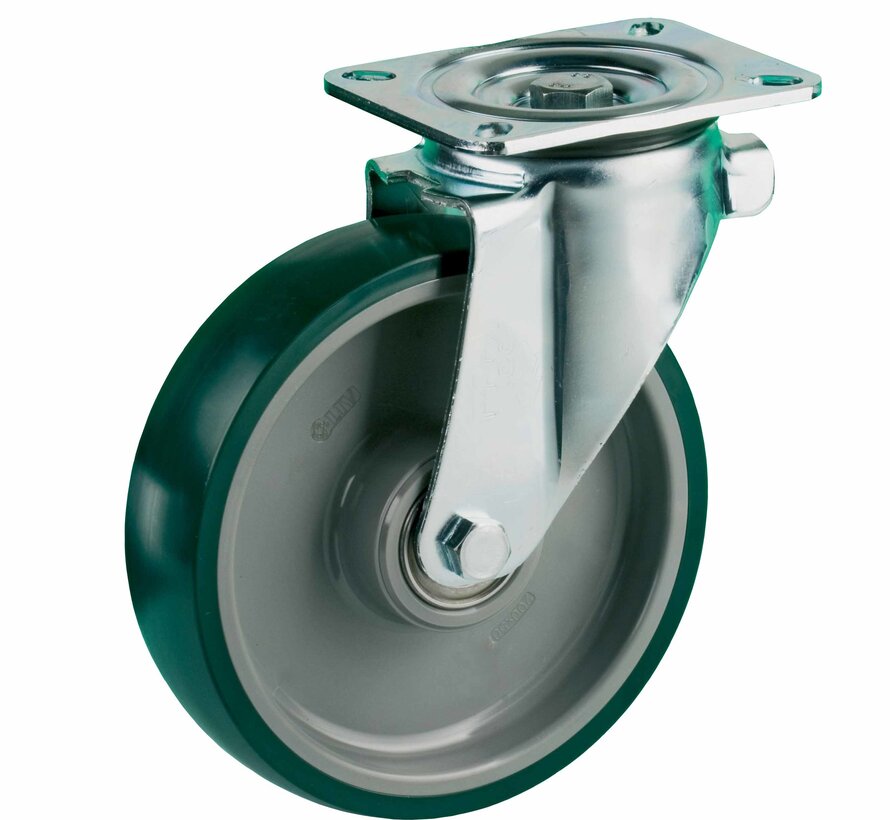

heavy duty Swivel castor + injection-moulded polyurethane tread Ø160 x W50mm for 400kg Prod ID: 42474
Product description
Product information
- Article code 2-082-32K
- SKU 42474
- EAN 3838461424748
Specifications
- Wheel diameter 160 mm
- Wheel width 50 mm
- Load capacity at 4 km/h 400 kg
- Static load capacity 500 kg
- Total height 200 mm
- Fitting Top plate
- Top plate size 140 x 110 mm
- Hole spacing 105 x 80 mm
- Bolt hole Ø 11 mm
- Offset 54 mm
- Bearing Ball bearing
- Tread material Injection-moulded polyurethane
- Tread hardness 92 Shore A
- Wheel centre Polyamide
- Directional lock Optional
- Temperature range -25 to +55 °C
- Weight 2.5 kg
