Heavy duty swivel castor with total lock 160 mm, polyurethane, plain bearing, plate 140x110 mm, 400 kg, Art. 2-083-32D

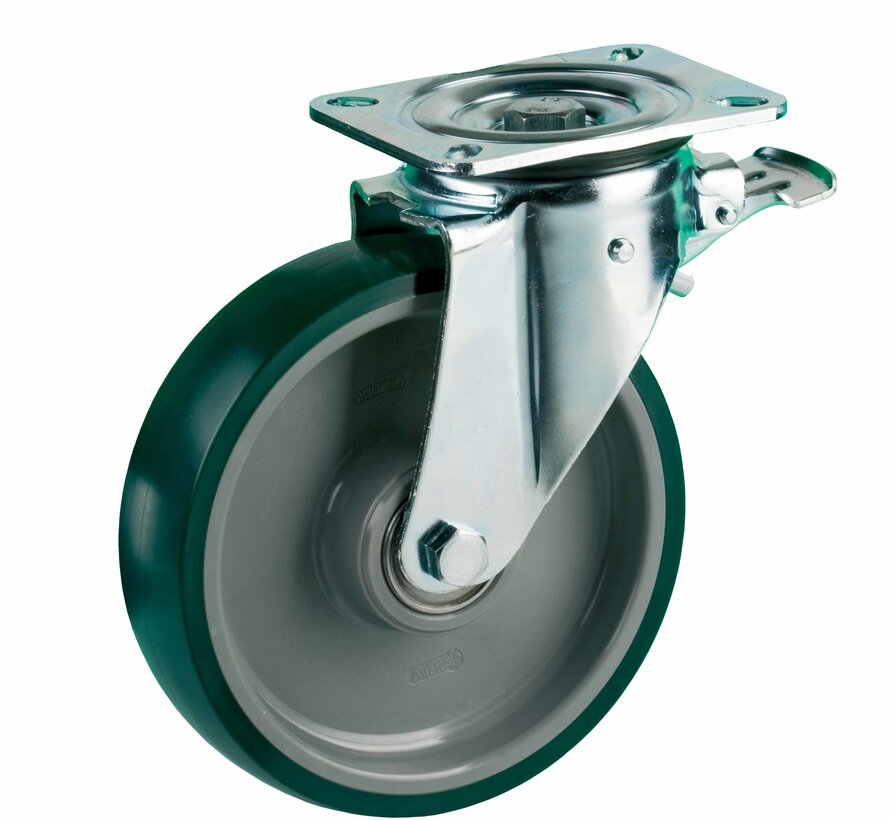

Heavy duty swivel castor with total lock, 160 mm wheel diameter, polyurethane tread, running on plain bearing. Rated load is 400 kg dynamic, 500 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm. The total lock brakes the rotation of the wheel and the swivel head.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeHeavy duty swivel castor with total lock
Wheel diameter160 mm
Wheel width50 mm
Treadpolyurethane tread, 92 Shore A
Tread colourgreen
Wheel centrepolyamide
Bearingplain bearing
Load capacity, dynamic400 kg
Load capacity, static500 kg

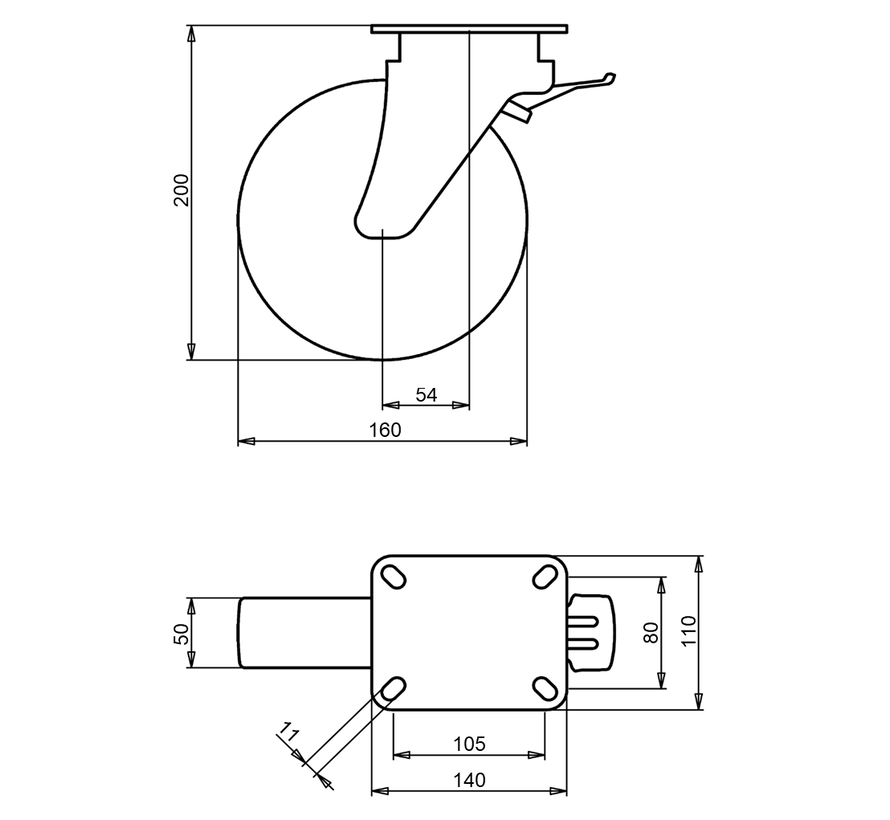

Top plate140x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height200 mm
Offset54 mm
Braketotal lock (locks wheel and swivel)
Directional lockoptional
Available versions (2)
  • Long pedal
  • Short pedal
Weight2.65 kg
Temperature, continuous-25 to +55 °C
Temperature, short exposure (max. 10 min)-30 to +55 °C
Tread materialInjection-moulded polyurethane

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Resists a wide range of chemicals. The polyurethane tread puts little pressure on the floor and the castor starts with low force. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
