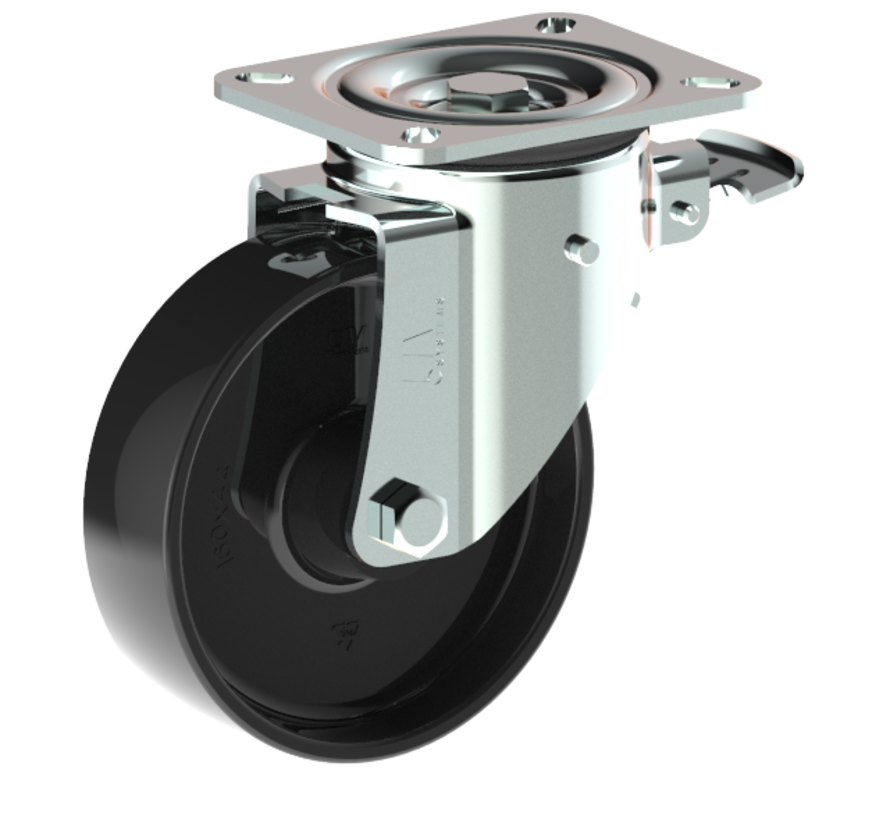

Heavy duty swivel castor with brake with a 160 mm wheel, solid polyamide wheel, on plain bearing. It carries 400 kg dynamic and 500 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.
| Type | Heavy duty swivel castor with brake |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 400 kg |
| Load capacity, static | 500 kg |

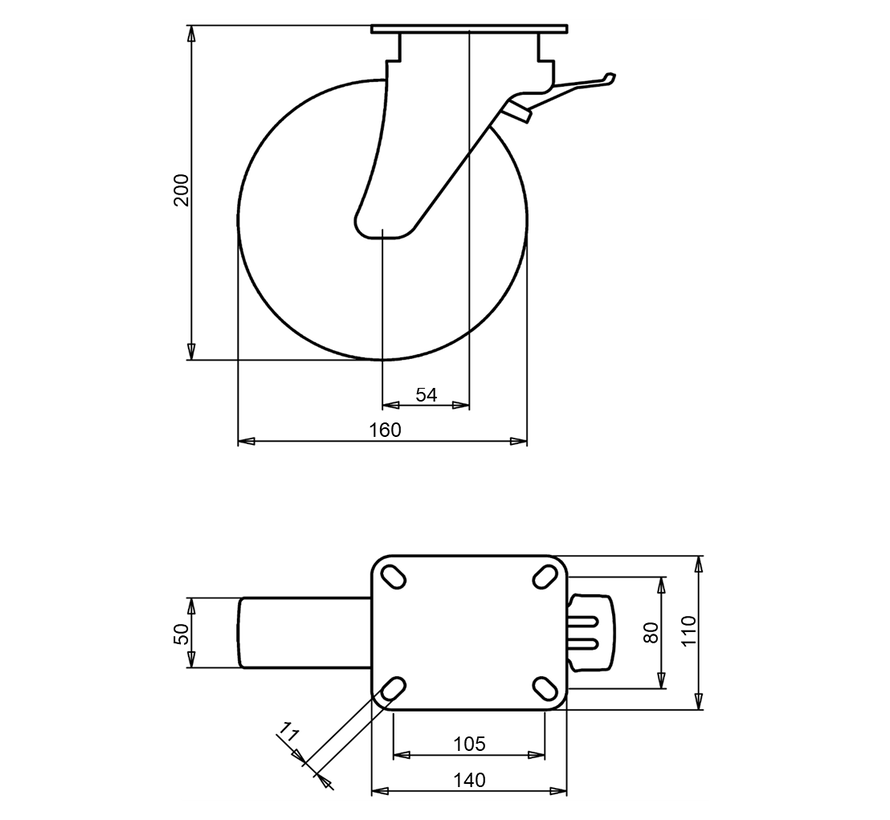

| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Hole diameter | 11 mm |
| Overall height | 200 mm |
| Offset | 54 mm |
| Brake | total brake (locks wheel and swivel) |
| Directional lock | optional |
| Weight | 2.8 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
