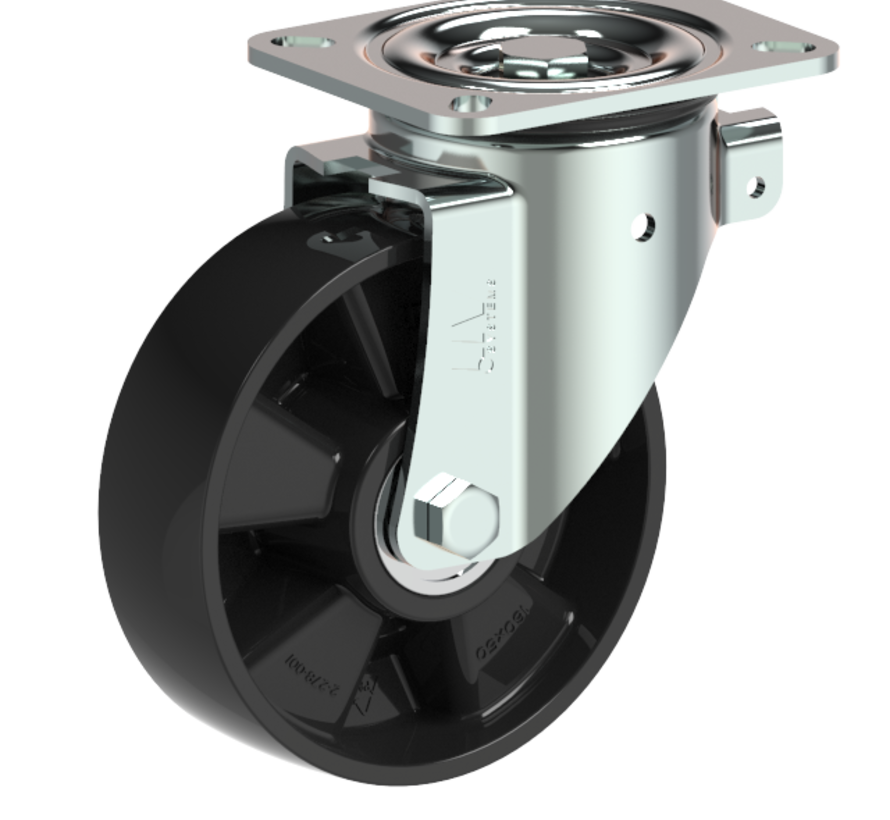

heavy duty Swivel castor + solid polyamide wheel Ø160 x W50mm for 400kg Prod ID: 55381

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D.

Approved and tested load capacity
Dynamic 400 kg
Static 500 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this High load easy start Swivel castor:
✓ wearout
✓ effort to keep rolling
✓ to turn

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor + solid polyamide wheel Ø160 x W50mm for 400kg Prod ID: 55381

ID 55381: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D | High load easy start, low wearout, little effort to keep rolling, easy to turn
