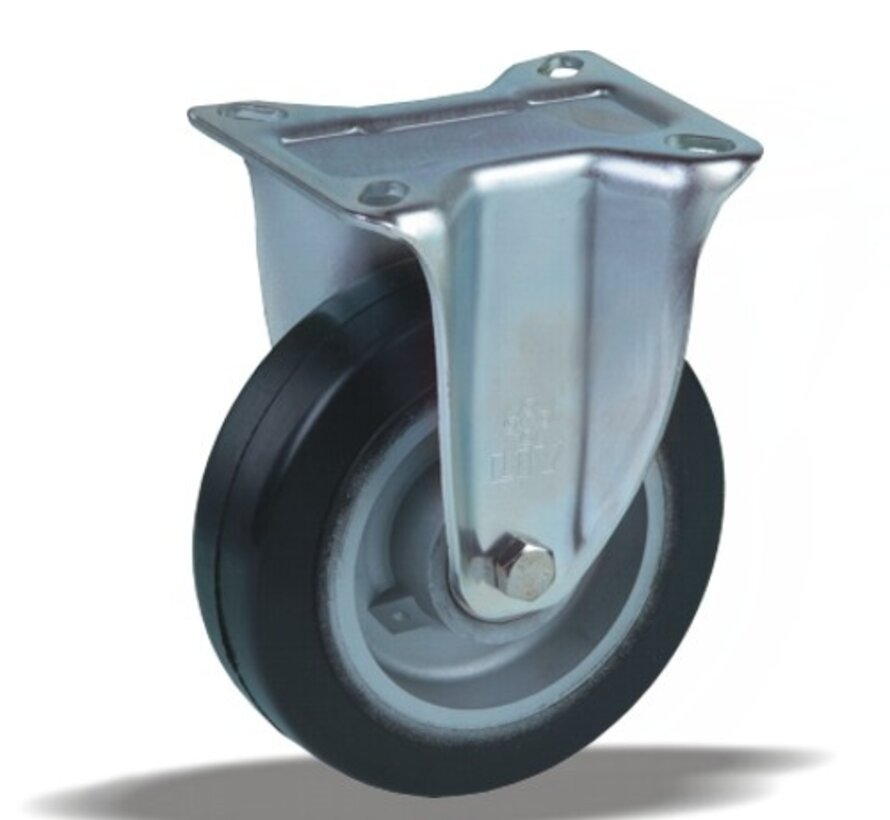

Fixed castor 100 mm, black rubber, ball bearing, plate 105x85 mm, 170 kg, Art. 2-111-20K
Fixed castor, 100 mm wheel diameter, black rubber tread, running on ball bearing. Rated load is 170 kg dynamic, 210 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Fixed castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
| Tread | black rubber tread, 92 Shore A |
| Tread colour | black |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 170 kg |
| Load capacity, static | 210 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 128 mm |
| Weight | 1 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Moves goods quietly over uneven floors and carries heavy loads. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-111-20K |
|---|---|
| SKU | 42544 |
| EAN | 3838461425448 |
