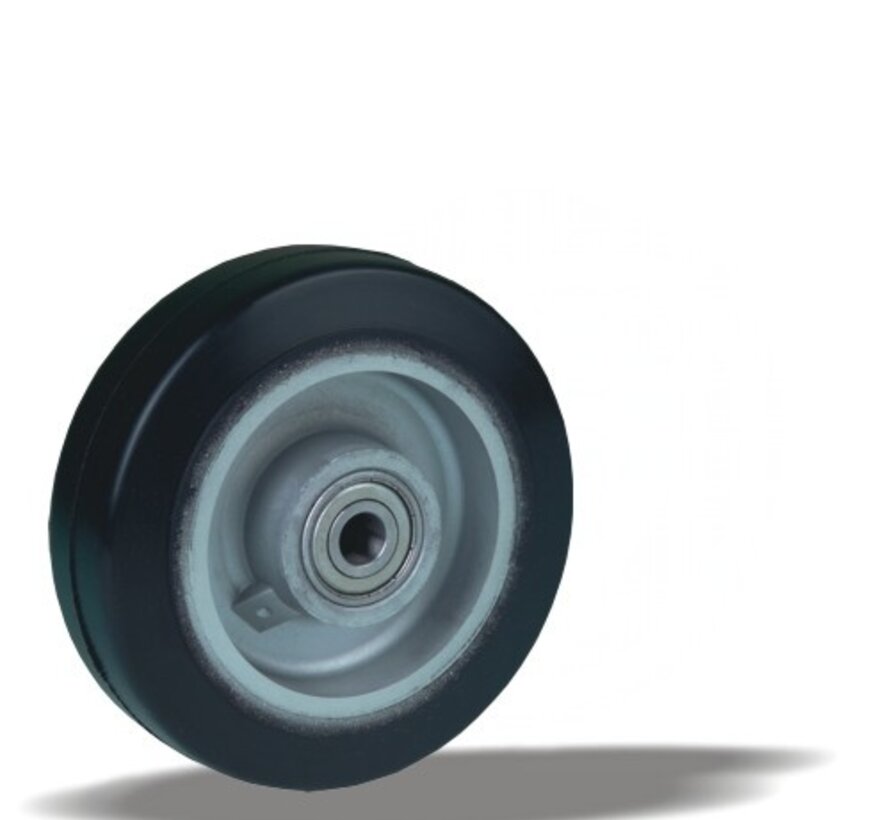

Wheel 100 mm, black rubber, ball bearing, axle hole 12 mm, 170 kg, Art. 2-110-20K
Wheel with a 100 mm wheel, black rubber tread, on ball bearing. It carries 170 kg dynamic and 210 kg static, with a 12 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
| Tread | black rubber tread, 92 Shore A |
| Tread colour | black |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 170 kg |
| Load capacity, static | 210 kg |
| Axle hole | 12 mm |
| Weight | 0.5 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
| Fitting | Wheel hub |
| Hub length | 44 mm |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Moves goods quietly over uneven floors and carries heavy loads. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-110-20K |
|---|---|
| SKU | 42495 |
| EAN | 3838461424953 |
