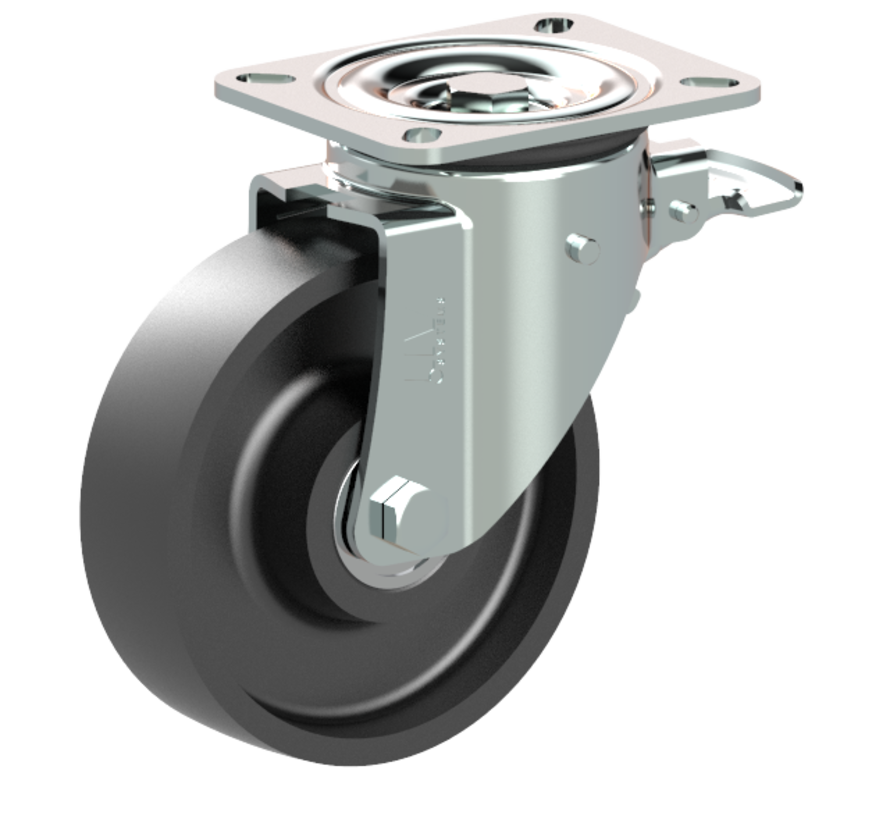

heavy duty Swivel castor with brake + solid cast iron wheel Ø160 x W50mm for 600kg Prod ID: 42525

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with brake with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm

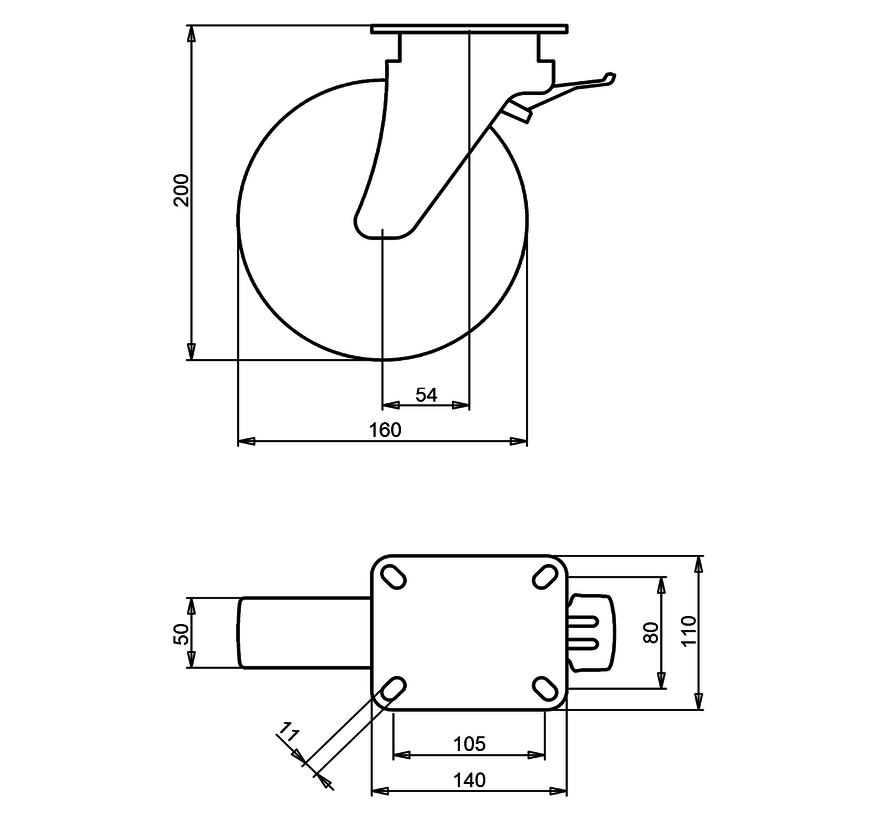

Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and solid cast iron wheel with hardness 180-220 ° 180-220 HB
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 600 kg
Static 750 kg

Temperature range:
Continious operation: -40 |+130°C
Short (10 min) exposure: -40 |+130°C

Advantages of this Heavyweight runner Swivel castor with brake:
✓ proof
✓ rolling resistance
✓ substantial temperature change

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor with brake + solid cast iron wheel Ø160 x W50mm for 600kg Prod ID: 42525

ID 42525: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and solid cast iron wheel with hardness 180-220 ° 180-220 HB | The double brake system, brakes the turning of the wheel and the swivel rotation. |
