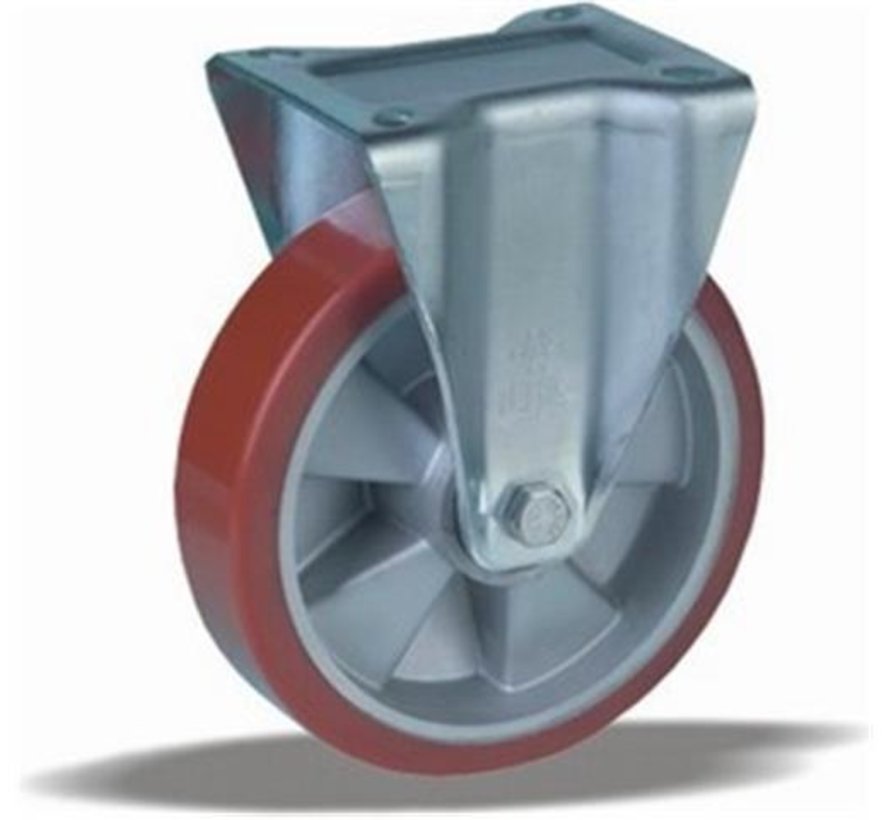

heavy duty Fixed castor + injection-moulded polyurethane tread Ø160 x W50mm for 600kg Prod ID: 42385

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Fixed castor with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium.

Approved and tested load capacity
Dynamic 600 kg
Static 750 kg

Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C

Advantages of this Indestructable footing Fixed castor:
✓ burden transport
✓ resistance
✓ own weight

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Fixed castor + injection-moulded polyurethane tread Ø160 x W50mm for 600kg Prod ID: 42385

ID 42385: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | Indestructable footing, effortless burden transport, chemical resistance, low
