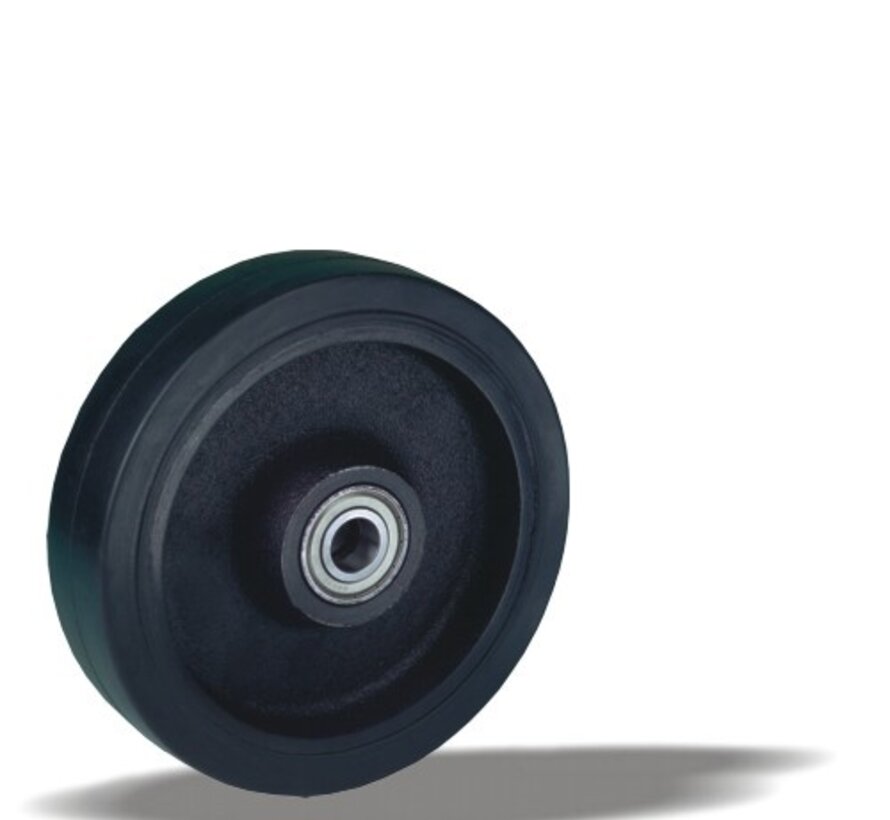

| Type | Heavy duty wheel |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 92 Shore A |
| Tread colour | black |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Axle hole | 20 mm |
| Weight | 3 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Kind to the floor and passes obstacles with ease. Heavy loads ride softly. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
