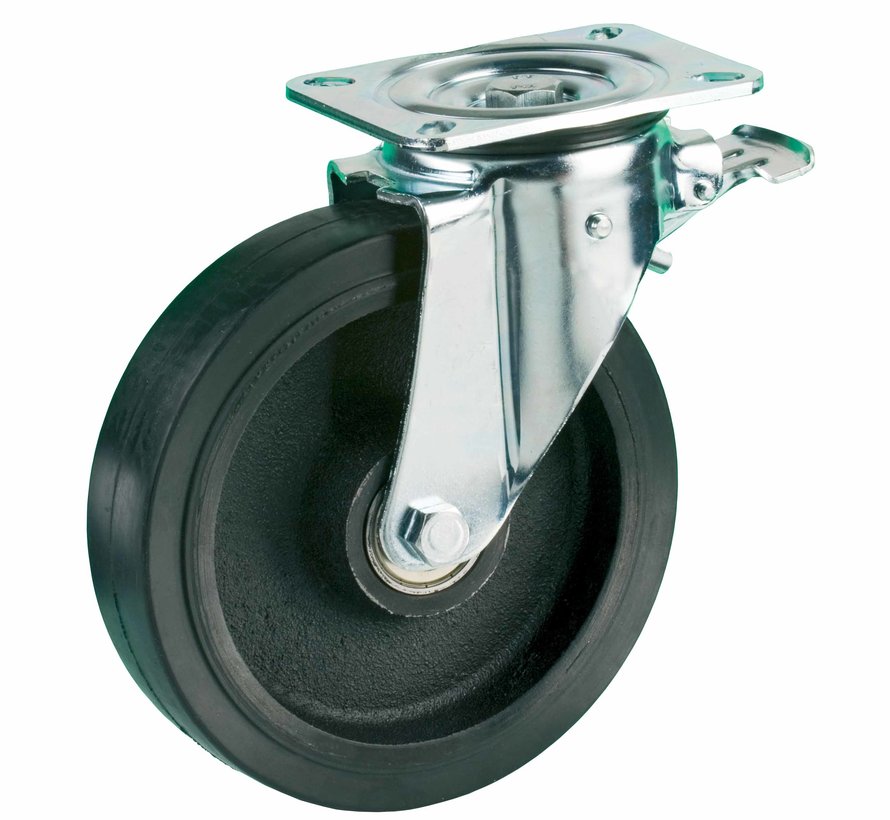

Heavy duty swivel castor with total lock 160 mm, black rubber, ball bearing, plate 140x110 mm, 500 kg, Art. 2-133-32K
Heavy duty swivel castor with total lock with black rubber tread, wheel diameter 160 mm, on ball bearing. It carries 500 kg dynamic and 620 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm. The total lock brakes the rotation of the wheel and the swivel head.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Heavy duty swivel castor with total lock |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | black rubber tread, 65 Shore A |
| Tread colour | black |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 500 kg |
| Load capacity, static | 620 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 200 mm |
| Offset | 54 mm |
| Brake | total lock (locks wheel and swivel) |
| Directional lock | optional Available versions (2)
|
| Weight | 5.15 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
Kind to the floor and passes obstacles with ease. Heavy loads ride softly. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-133-32K |
|---|---|
| SKU | 42434 |
| EAN | 3838461424342 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
