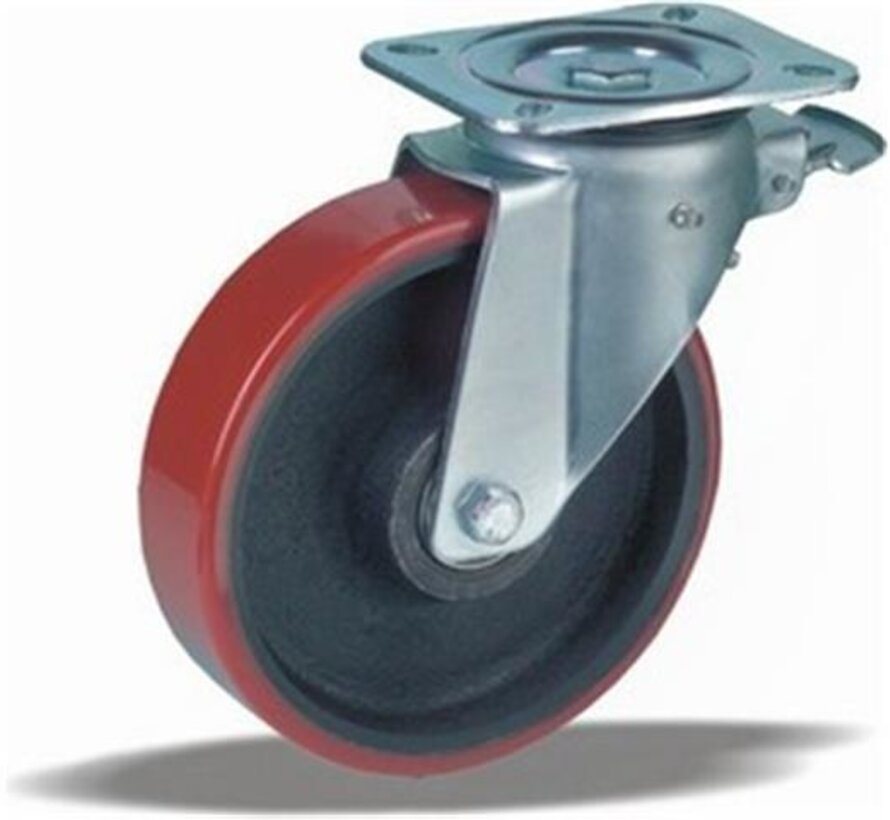

heavy duty Swivel castor with brake with an overall height of 200 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 65 ° Shore A on cast iron
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 600 kg
Static 750 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Gravity resisting Swivel castor with brake:
✓ high loads
✓ deformation when stationed
✓ by rough textures


heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø160 x W50mm for 600kg Prod ID: 42454
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-143-32K
- SKU 42454
- EAN 3838461424540
Specifications
