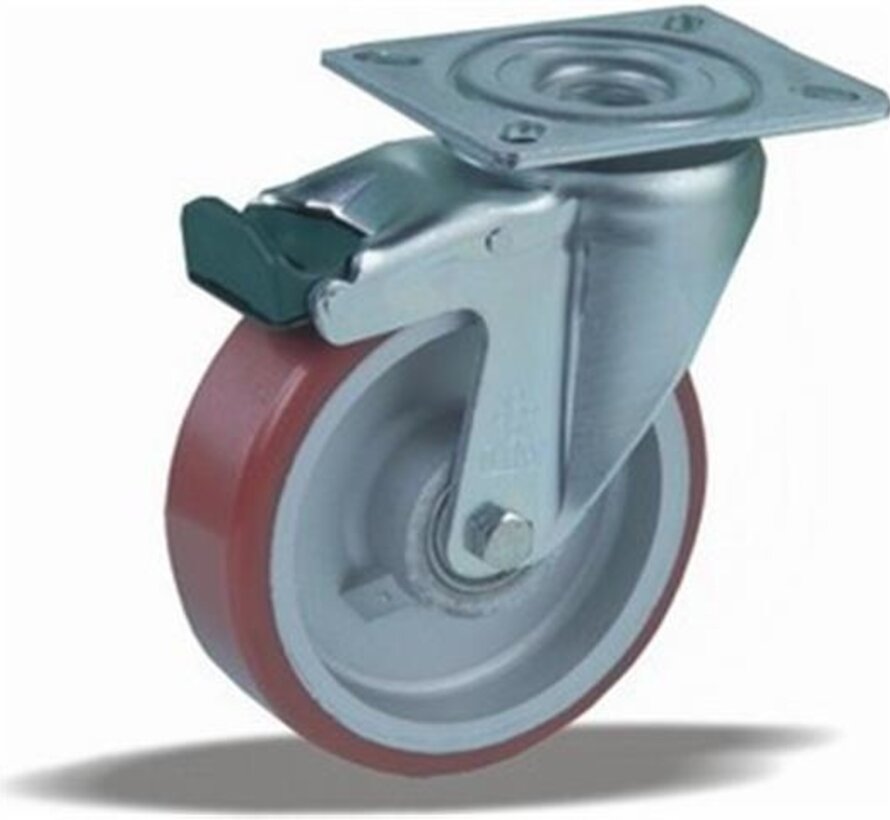

heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø100 x W40mm for 250kg Prod ID: 42405

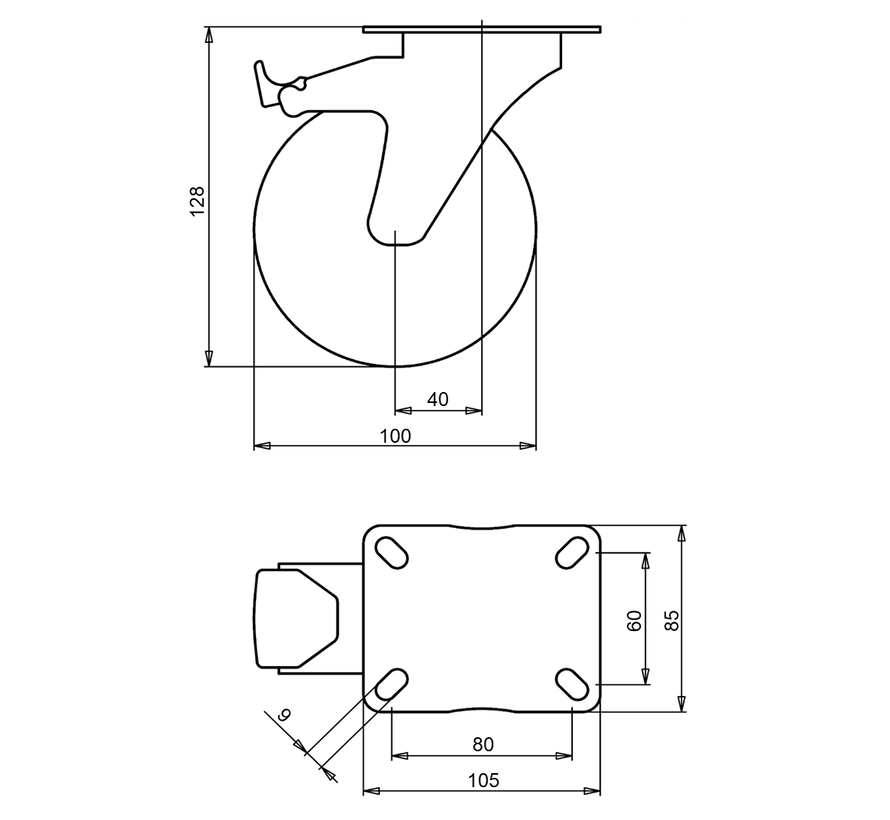

heavy duty Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 40 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 250 kg
Static 310 kg

Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C



Advantages of this Indestructable footing Swivel castor with brake:
✓ burden transport
✓ resistance
✓ own weight
