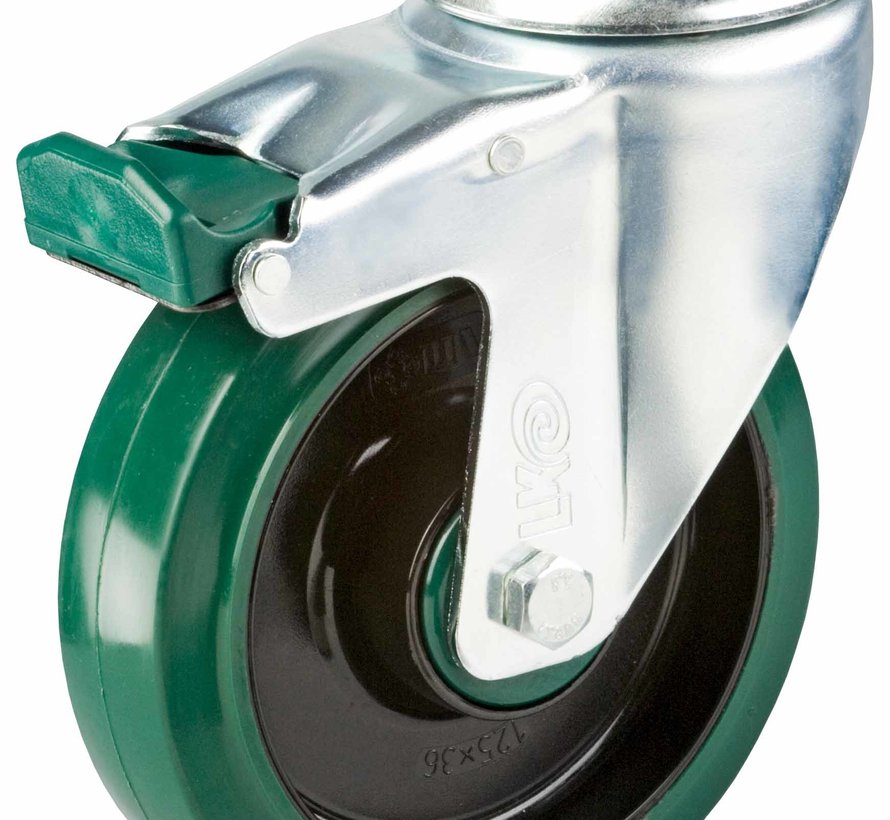

stainless steel Swivel castor with brake with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Tile floor ride Swivel castor with brake:
✓ absorbing
✓ ride over obstacles
✓ to keep clean
stainless steel Swivel castor with brake + elastic rubber tyre Ø160 x W50mm for 300kg Prod ID: 41824
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-045-32D
- SKU 41824
- EAN 3838461418242
Specifications
