stainless steel Swivel castor + elastic rubber tyre Ø160 x W50mm for 300kg Prod ID: 41813

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

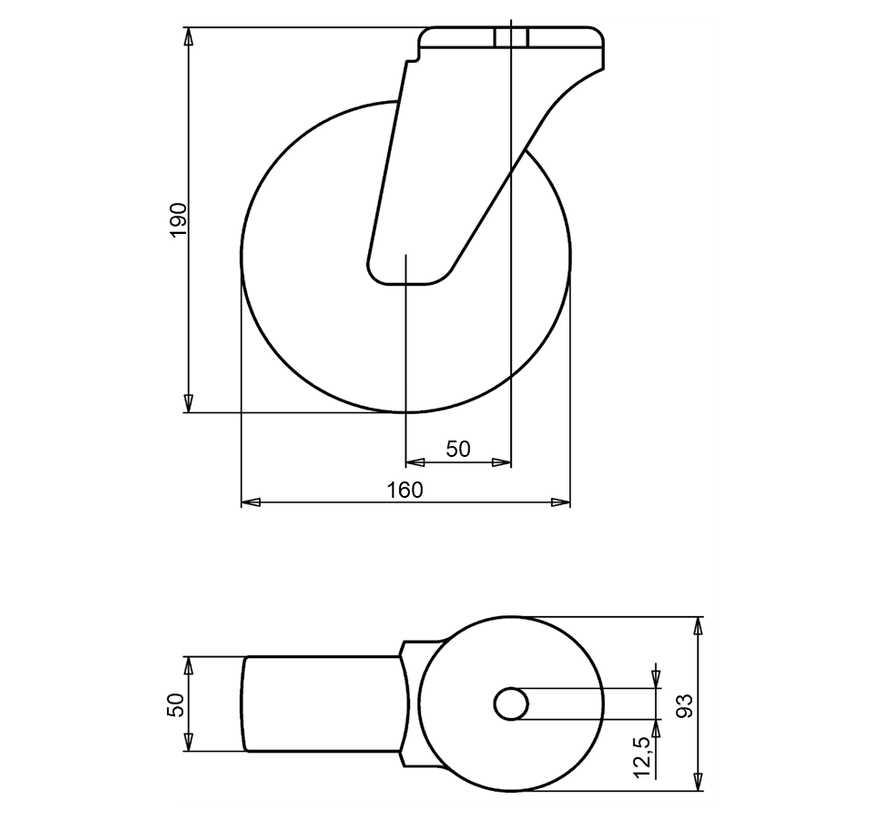

stainless steel Swivel castor with an overall height of 232 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Tile floor ride Swivel castor:
✓ absorbing
✓ ride over obstacles
✓ to keep clean

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + elastic rubber tyre Ø160 x W50mm for 300kg Prod ID: 41813

ID 41813: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and elastic rubber tyre with hardness 70 ° Shore A | Tile floor ride, shock absorbing, smooth ride over obstacles, easy to keep clean
