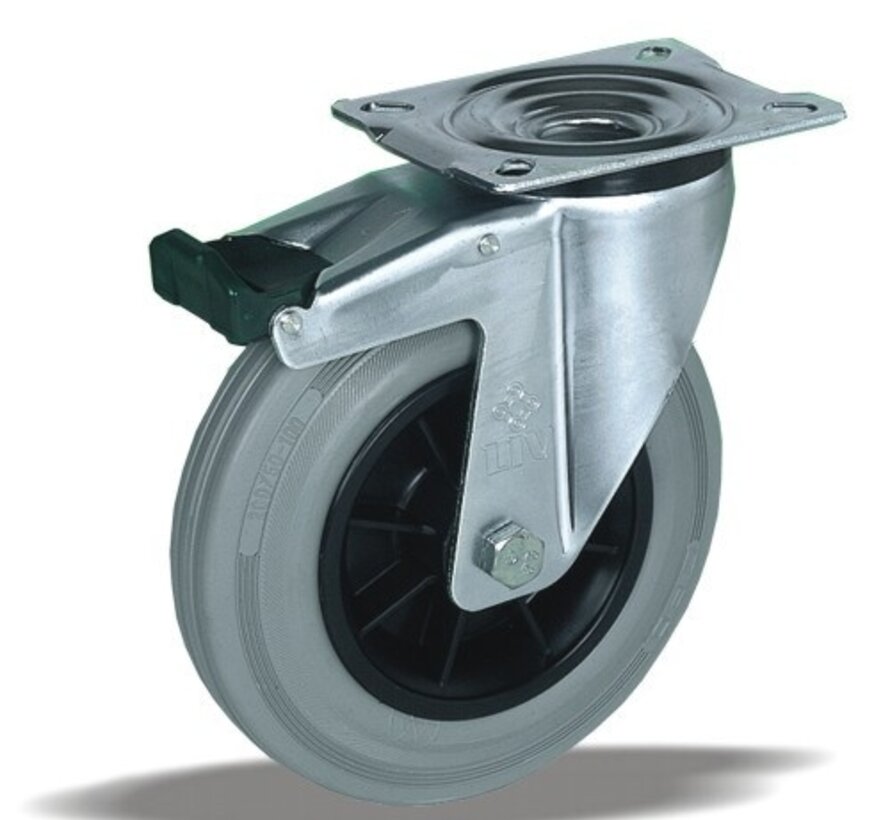

stainless steel Swivel castor with brake + grey rubber tyre Ø125 x W37mm for 130kg Prod ID: 41523

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 37 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 130 kg
Static 160 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Floor floor turns Swivel castor with brake:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor with brake + grey rubber tyre Ø125 x W37mm for 130kg Prod ID: 41523

ID 41523: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Floor floor
