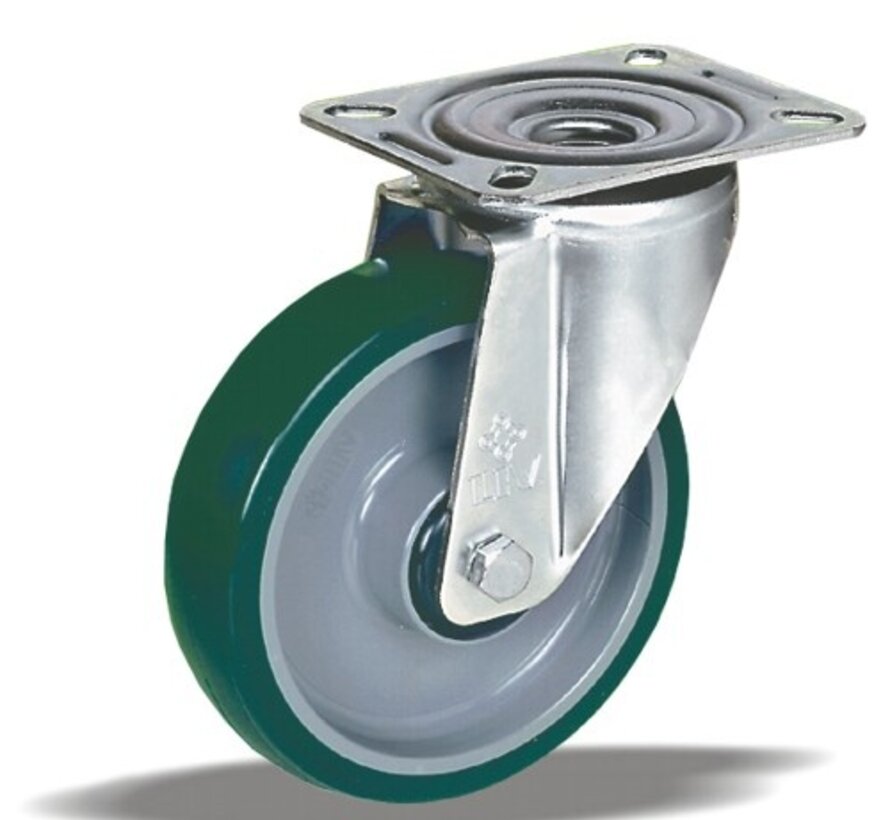

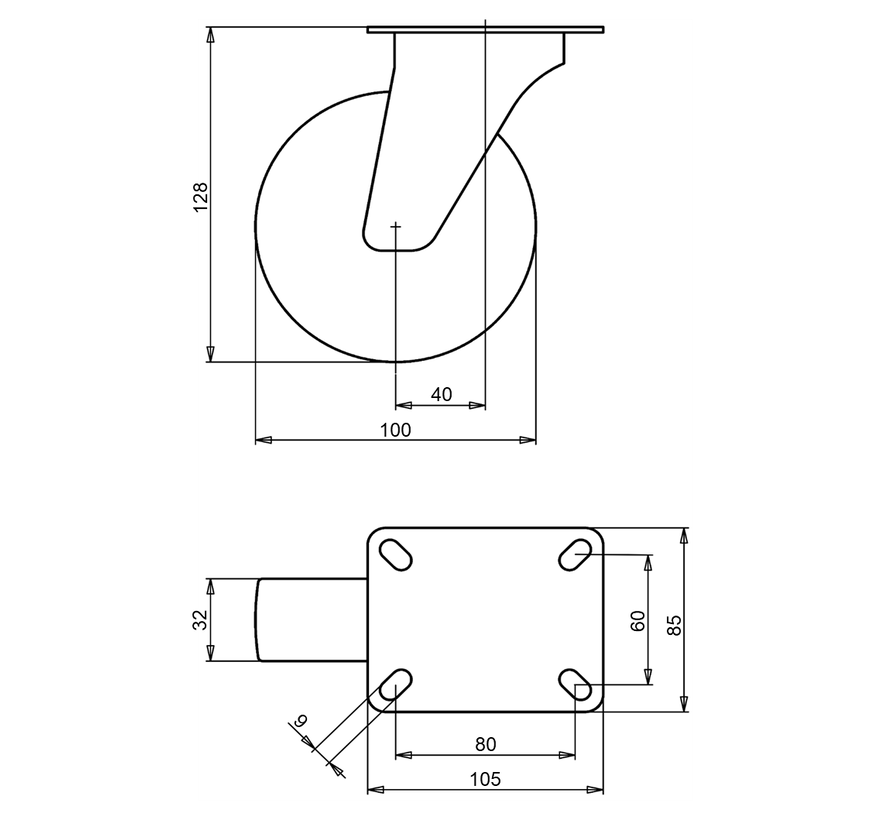

Stainless steel swivel castor, 100 mm wheel diameter, injection-moulded polyurethane tread, running on plain bearing. Rated load is 150 kg dynamic, 180 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
| Type | Stainless steel swivel castor |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | injection-moulded polyurethane tread, 92 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Hole diameter | 9 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Weight | 0.83 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -30 to +55 °C |
Properties and use
Little deformation when the unit stands still, and oil resistant. The temperature range is wide, see the table. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
