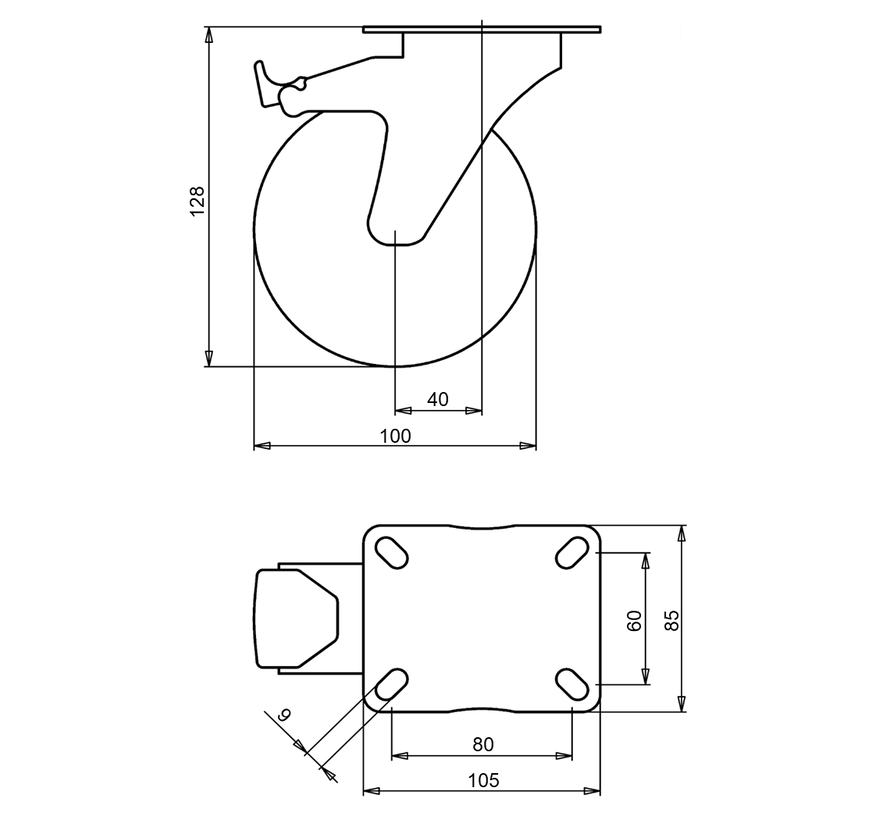

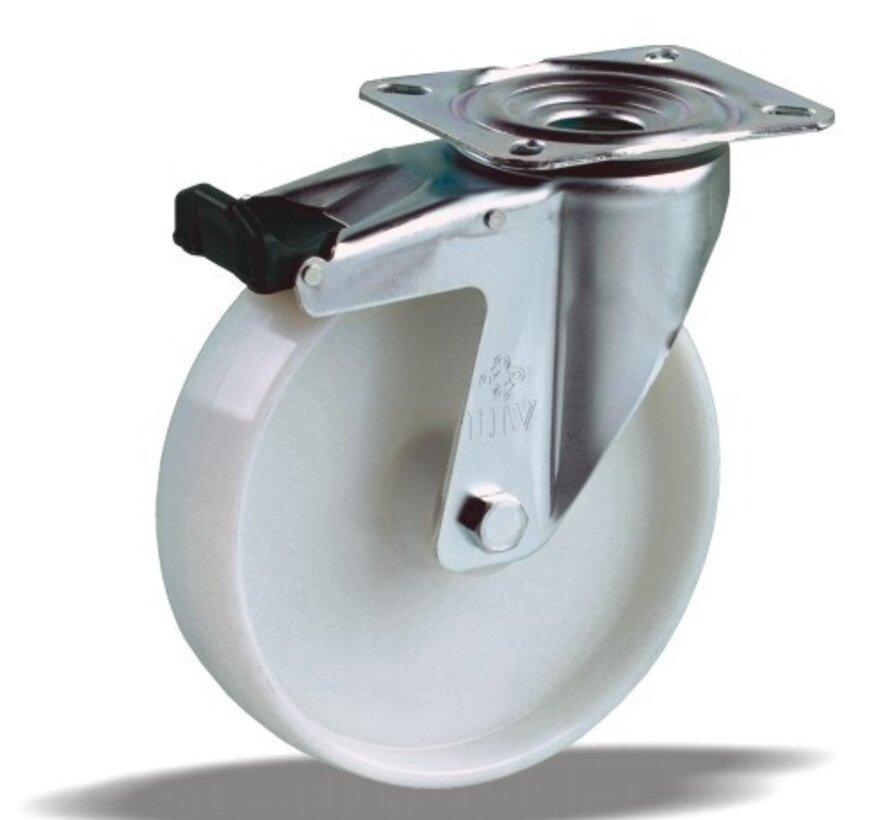

Swivel castor with brake with a 100 mm wheel, solid polyamide wheel, on roller bearing. It carries 200 kg dynamic and 250 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
| Type | Swivel castor with brake |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 35 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Hole diameter | 9 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.87 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
