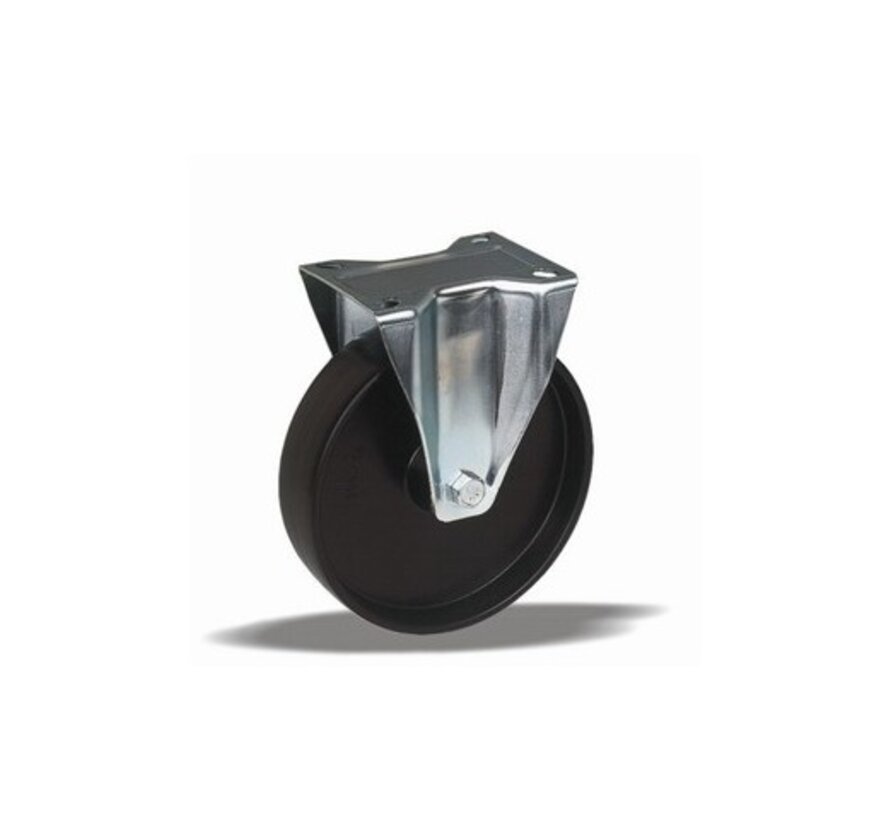

Fixed castor 100 mm, polyamide, roller bearing, plate 105x85 mm, 200 kg, Art. 2-061-20V, no. 40775

Fixed castor with solid polyamide wheel, wheel diameter 100 mm, on roller bearing. It carries 200 kg dynamic and 250 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeFixed castor
Wheel diameter100 mm
Wheel width35 mm
Treadsolid polyamide wheel, 70±5 Shore D
Wheel centrepolyamide
Bearingroller bearing
Load capacity, dynamic200 kg
Load capacity, static250 kg
Top plate105x85 mm
Hole distance80x60 mm
Fixing hole diameter9 mm
Overall height128 mm
Weight0.52 kg
Temperature, continuous-25 to +80 °C
Temperature, short exposure (max. 10 min)-30 to +110 °C
Tread hardness70 Shore D

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
