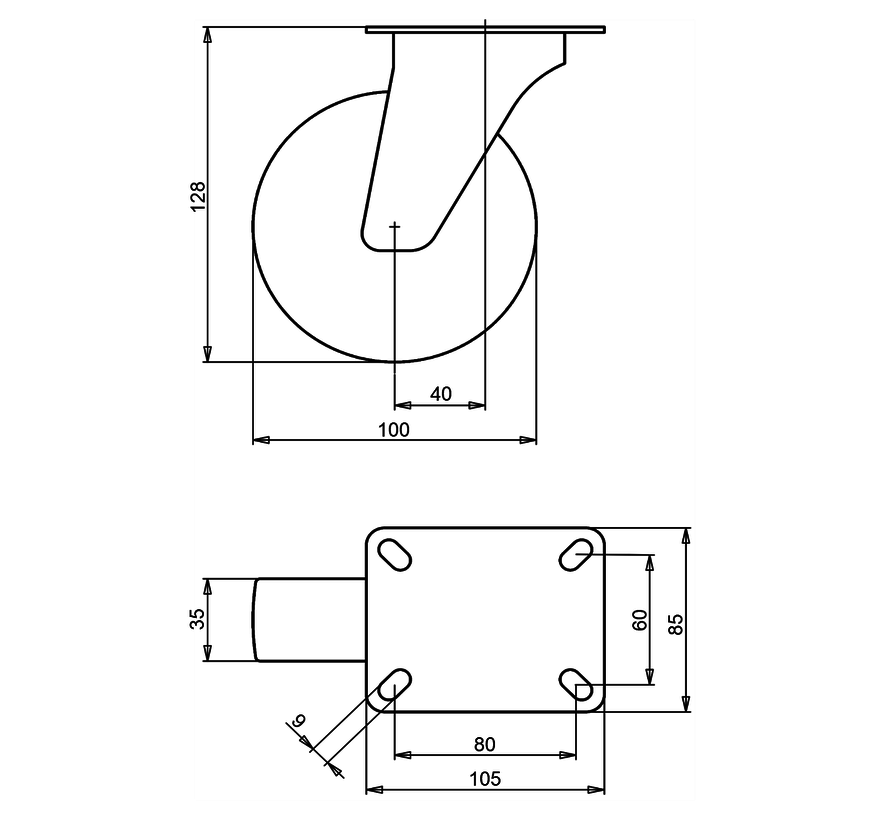

standard Swivel castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with plain bearing and solid polyamide wheel with hardness 70±5 Shore D.
Approved and tested load capacity
Dynamic 200 kg
Static 250 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this High load easy start Swivel castor:
✓ wearout
✓ effort to keep rolling
✓ to turn
standard Swivel castor + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 40825
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-062-20D
- SKU 40825
- EAN 3838461408250
Specifications
