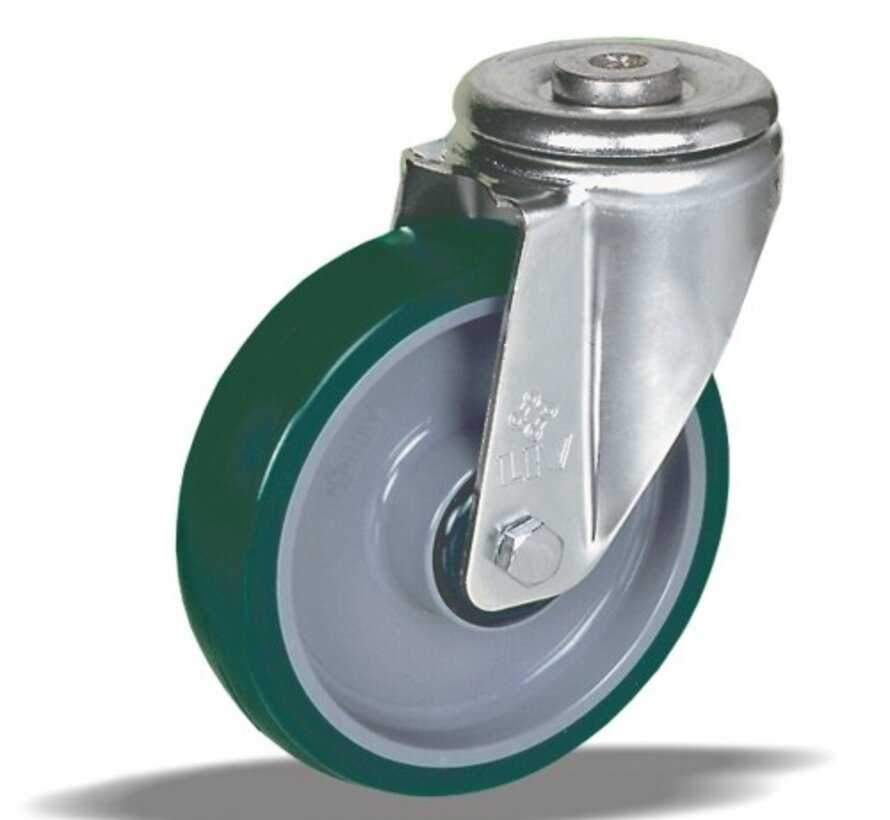

standard Swivel castor + injection-moulded polyurethane Ø200 x W50mm for 300kg Prod ID: 40613

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

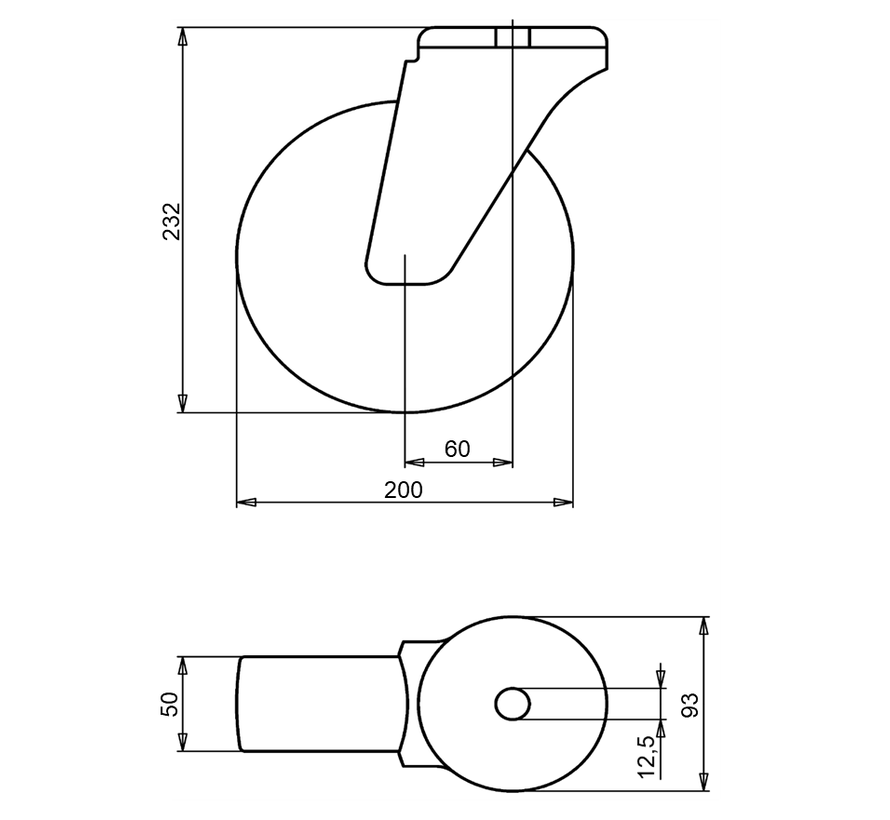

standard Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C

Advantages of this Jump floor champion Swivel castor:
✓ stoney floor
✓-proof
✓ high temperature differences

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor + injection-moulded polyurethane Ø200 x W50mm for 300kg Prod ID: 40613

ID 40613: Castor overall height 232 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and injection-moulded polyurethane with hardness 92 ° shore A | Jump floor champion, on stoney floor, cuts-proof, for high temperature differences
