standard wheel + injection-moulded polyurethane Ø100 x W32mm for 150kg Prod ID: 40415

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

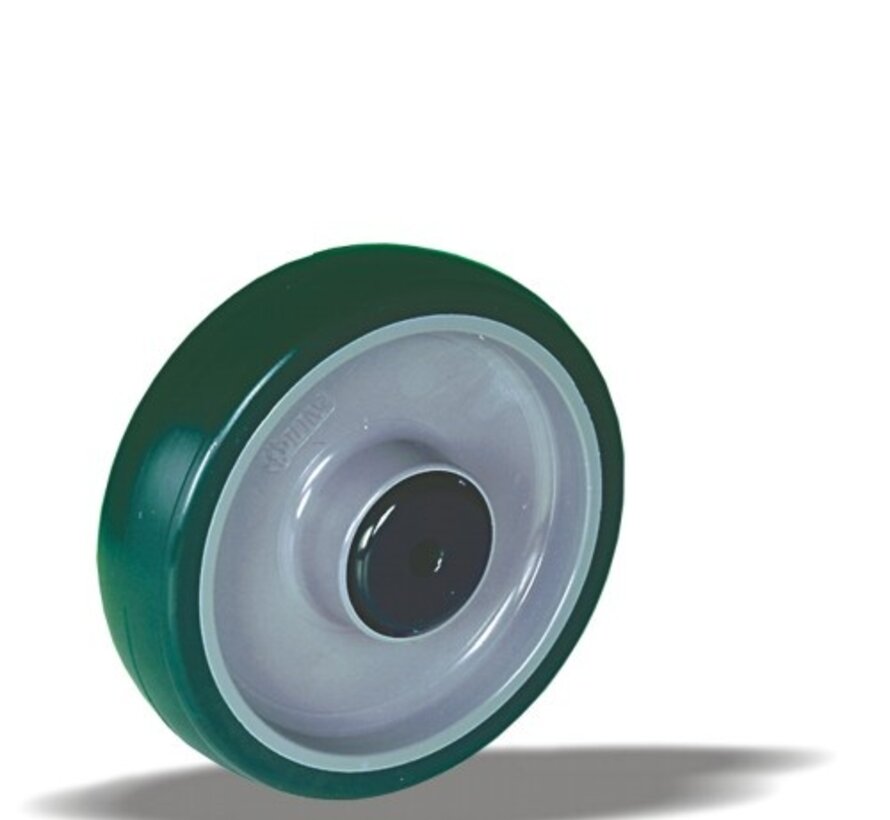

standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide
Wheel diameter x width: 100 x 32 mm
Axle hole: 8,5 mm
Hub length: 44 mm

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this Jump floor champion wheel:
✓ stoney floor
✓-proof
✓ high temperature differences

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + injection-moulded polyurethane Ø100 x W32mm for 150kg Prod ID: 40415

ID 40415:standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide | Axle hole: 8,5 mm | Hub length: 44 mm | Jump floor champion, on stoney floor, cuts-proof, for high temperature differences
